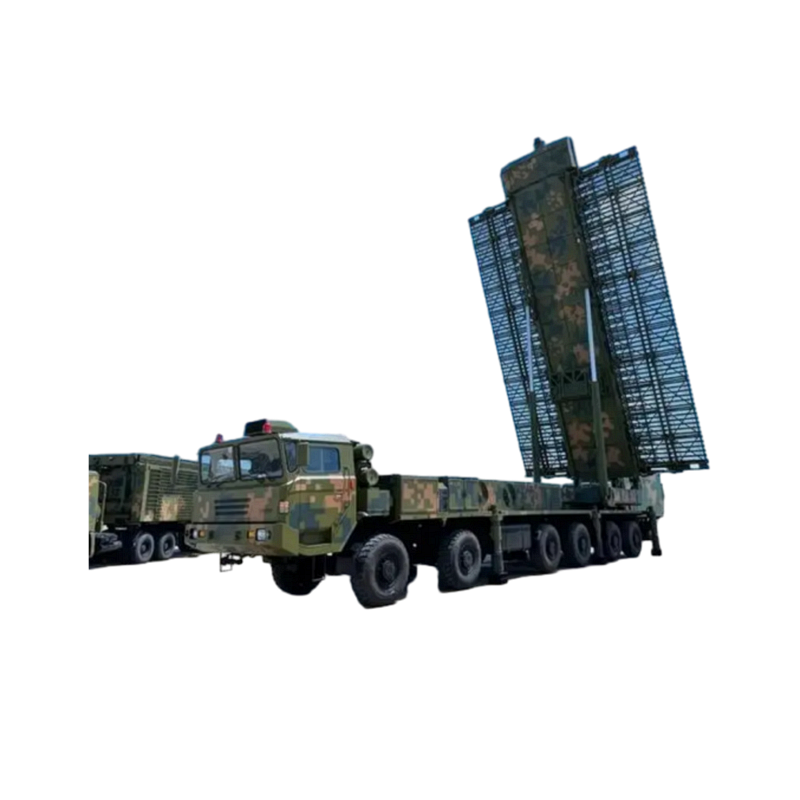

The YLC-8E is a UHF-band 3D surveillance radar designed for long-range airspace monitoring, early warning, and tactical air defense applications. Equipped with 3D detection capability, it provides accurate measurement of target range, azimuth, and elevation, making it ideal for tracking aircraft, UAVs, and ballistic threats. The system combines high reliability, electronic counter-countermeasure (ECCM) capability, and flexible deployment options for modern air defense networks.
Representative Specifications (indicative)
| Parameter | Value / Range | Notes |
|---|---|---|
| Frequency Band | UHF (300–1,000 MHz) | Long-range detection capability |
| Detection Range | ~450–600 km | Dependent on target RCS and altitude |
| Altitude Coverage | Up to 40,000 m | Tracks high and medium-altitude targets |
| Azimuth Coverage | 360° | Full circular scanning |
| Elevation Coverage | 0–30° | Adjustable for 3D tracking |
| Radar Type | Phased-array | Electronically scanned for rapid beam steering |
| Beamwidth | ~1° | High angular resolution |
| Mobility | Fixed or vehicle-mounted | Mobile deployment for tactical operations |
| Power Supply | AC 380 V / vehicle generator | Flexible depending on deployment |
| Environmental Rating | -30°C to +55°C; weatherproof | Designed for harsh conditions |
| Operators Required | 3–5 | Radar operation and monitoring |
Key Features
-
UHF Band Operation: Provides long-range detection and robust performance in adverse weather or cluttered environments.
-
3D Surveillance: Measures range, azimuth, and elevation for precise target tracking.
-
Electronic Counter-Countermeasures (ECCM): Enhances performance in contested electromagnetic environments.
-
High Reliability: Designed for continuous operation in extreme weather and harsh environmental conditions.
-
Flexible Deployment: Can be installed on fixed platforms or mobile vehicles for tactical flexibility.
-
Advanced Signal Processing: Supports clutter suppression, automatic target detection, and tracking.
-
User-Friendly Interface: Integrated software for visualization, reporting, and radar control.
-
Network Integration: Compatible with air defense command-and-control systems for centralized situational awareness.
