Product overview

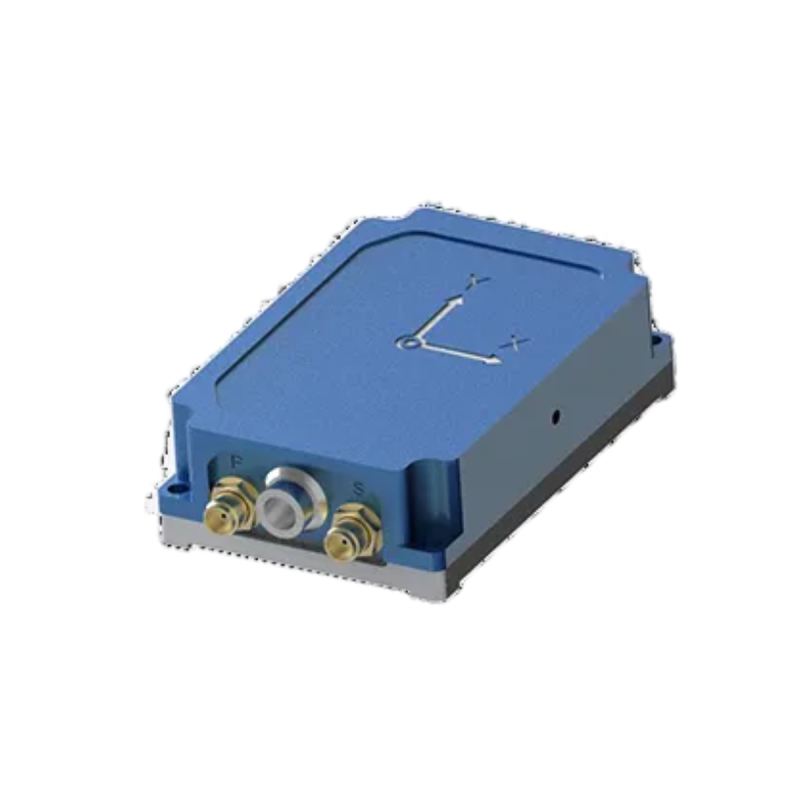

SNC100C-LITE integrated navigation system has built-in high-performance MEMS gyroscope and accelerometer, which can receive internal GNSS data, realize multi-sensor fusion and integrated navigation solution algorithm, and has short-term inertial navigation ability when GNSS is invalid. The product has high reliability and strong environmental adaptability. By matching different software, the product can be widely used in tactics and industry, no system, and intelligent ammunition.
1. Product features
Built in high-precision ten axis IMU
The accuracy is guaranteed within the full temperature range (- 40 ℃ ~ 70 ℃)
Small size and light weight
With shaking / moving base alignment function
2. Main application fields
Tactical and industrial UAV
Intelligent ammunition
Dynamic communication
Unmanned ship, unmanned vehicle
Automatic driving
3 Working principle
The inertial measurement unit is composed of three accelerometers and three gyroscopes. It is responsible for measuring the acceleration and angular velocity of the carrier and sending these information to the information processing circuit. The information processing circuit uses the acceleration and angular velocity measured by the inertial measurement unit for navigation settlement, and takes the satellite navigation information received by the GNSS receiver as the reference for integrated navigation, The navigation error of inertial navigation is corrected, and the navigation information is output through the information interface circuit.
4. Performance index
Project |
Indicator（RMS） |
|
| Heading accuracy | Dual GNSS | 0.1° |
| Single GNSS | 0.2° | |
| Post processing | 0.03° | |
| Maintain accuracy | 0.2°/min | |
| Attitude accuracy | GNSS valid | 0.1° |
| Inertia / odometer combination | 0.1°（RMS） | |
| Post processing | 0.02° | |
| Maintain accuracy | 0.2°/min | |
| V-G mode | 2° | |
| Horizontal positioning accuracy | GNSS valid | 1.2m |
| 2cm+1ppm | ||
| Inertia / odometer combination | 2‰D（D represents mileage，CEP） | |
| Post processing | 1cm+1ppm | |
| GNSS failure | 20m | |
| Horizontal velocity accuracy | GNSS valid | 0.1m/s |
| Inertia / odometer combination | 0.1m/s（RMS） | |
| Inertial / DVL combination | 0.2m/s（RMS） | |
| Gyroscope | Measuring range | ±450°/s |
| Zero bias stability | 2°/h | |
| Accelerometer | Measuring range | ±16g |
| Zero bias stability | 30µg | |
| communication interface | RS232 | 1way |
| RS422 | 1way | |
| CAN | 1way | |
| Odometer differential input | 1way | |
| PPS output | 1way | |
| EVENT input | 1way | |
| Electrical characteristics | Voltage | 5~36VDC |
| power waste | ≤3W | |
| Ripple | 100 mV | |
| Structural characteristics | Size | 80 mm×53 mm×23mm |
| Weight | ≤150g | |
| Use environment | Working temperature | -40℃~+60℃ |
| Storage temperature | -45℃~+65℃ | |
| Vibration | 20~2000Hz，6.06g | |
| To attack | 30g，11ms | |
| Degree of protection | IP65 | |
| Reliability | MTBF | 30000h |
| life | >15年 | |
| Continuous working time | >24h | |
