Product description

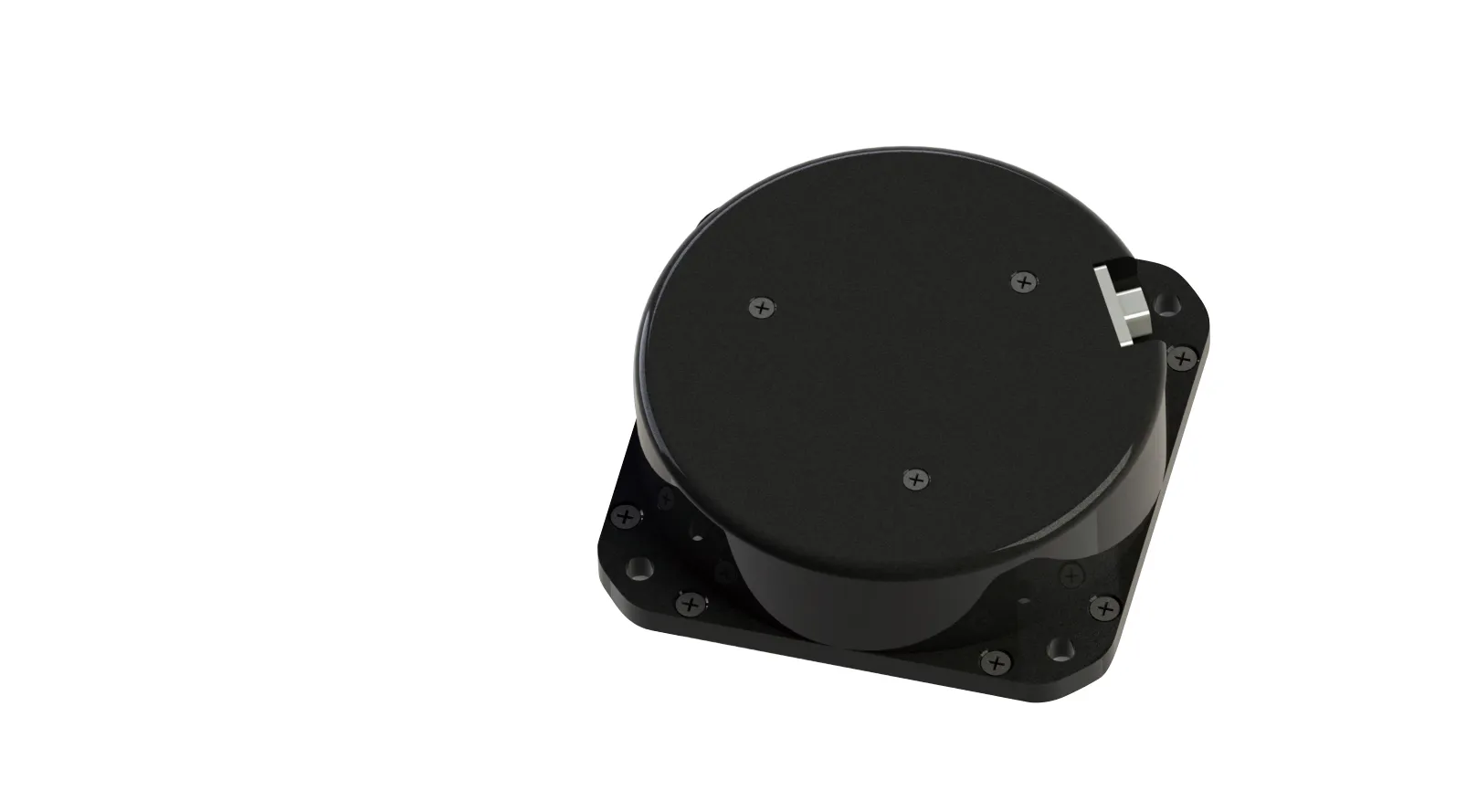

DH-G120S series single axis fiber optic gyroscope is an all solid-state high-precision single axis fiber optic gyroscope integrating light, machinery and electricity. It follows the classic design concept of traditional fiber optic gyroscope and adopts mature fiber optic gyroscope manufacturing technology. It has the outstanding advantages of high reliability, power consumption, fast start-up, simple interface and convenient use, It can be widely used in the field of navigation guidance and control.
Main indicators: DH-G120SA
Overall dimension: 120 × one hundred and twenty × 33mm
Weight: < 700g
Range: ± 500 ° / S
Bandwidth: ≥ 200Hz
Zero bias stability: < 0.003 ° / h
Zero bias repeatability: < 0.003 ° / h
Scale factor nonlinearity: < 5ppm
Working voltage: + 5V
Output mode: RS422 / TTL pulse
Operating temperature: – 40 ~ + 60 ° C
Weight: < 700g
Range: ± 500 ° / S
Bandwidth: ≥ 200Hz
Zero bias stability: < 0.003 ° / h
Zero bias repeatability: < 0.003 ° / h
Scale factor nonlinearity: < 5ppm
Working voltage: + 5V
Output mode: RS422 / TTL pulse
Operating temperature: – 40 ~ + 60 ° C
