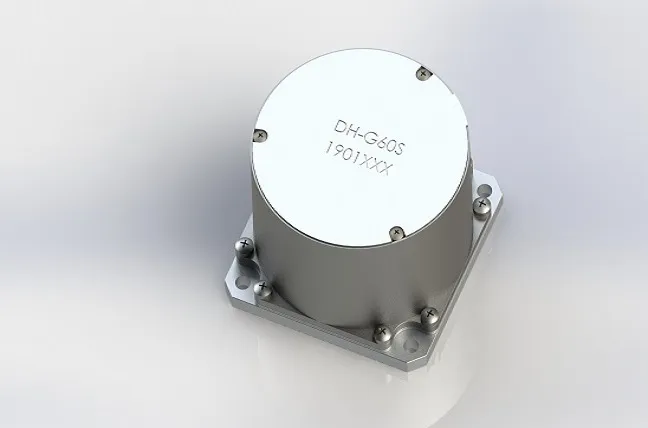

Product description
DH-G60S series single axis fiber optic gyroscope is an all solid-state medium precision single axis fiber optic gyroscope integrating optics, mechanics and electricity. It follows the classic design concept of traditional fiber optic gyroscope and adopts mature fiber optic gyroscope manufacturing technology. It has the outstanding advantages of high reliability, low power consumption, fast start-up, simple interface and convenient use. It can be widely used in the field of navigation guidance and control.
Main indicators: DH-G60SA
Overall dimension: 60 × 60 × 36mm
Weight: < 230g
Range: ± 500 ° / S
Bandwidth: ≥ 200Hz
Zero bias stability: < 0.3 ° / h
Zero bias repeatability: < 0.3 ° / h
Scale factor nonlinearity: < 100ppm
Working voltage: + 5V
Output mode: RS422
Operating temperature: – 40 ~ + 60 ° C
Weight: < 230g
Range: ± 500 ° / S
Bandwidth: ≥ 200Hz
Zero bias stability: < 0.3 ° / h
Zero bias repeatability: < 0.3 ° / h
Scale factor nonlinearity: < 100ppm
Working voltage: + 5V
Output mode: RS422
Operating temperature: – 40 ~ + 60 ° C
