Product description

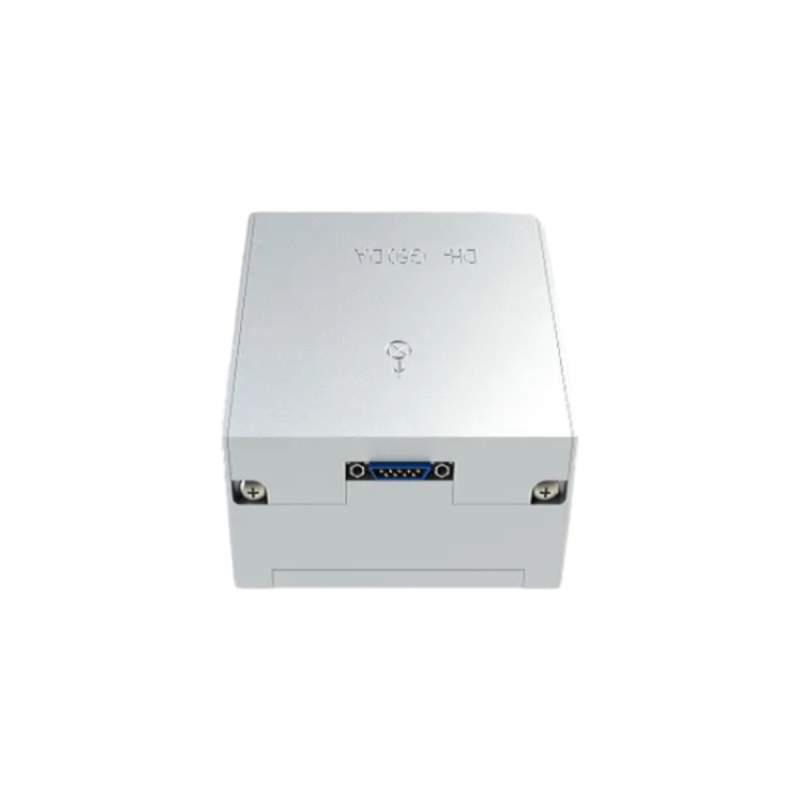

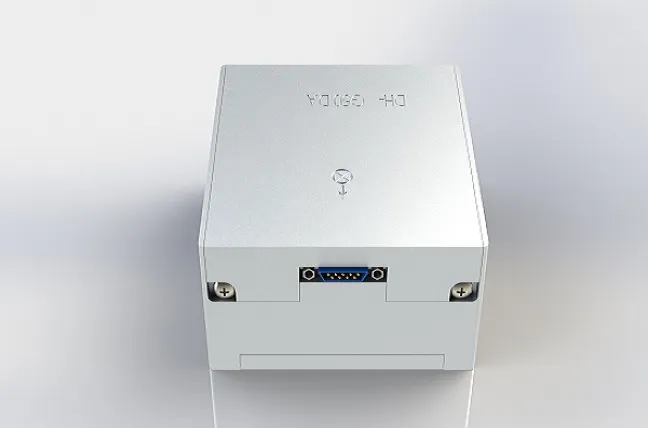

DH-G50DA series dual axis fiber optic gyroscope is an all solid state medium precision dual axis fiber optic gyroscope integrating optics, mechanics and electricity. It follows the classic design concept of traditional fiber optic gyroscope and adopts mature fiber optic gyroscope manufacturing technology. It has the outstanding advantages of small volume, high reliability, low power consumption, fast start-up, simple interface and convenient use, It can be widely used in the field of navigation guidance and control.
Main indicators: DH-G50DA
Overall dimension: 50 × 50 × 26mm
Weight: < 200g
Range: ± 500 ° / S
Bandwidth: ≥ 200Hz
Zero bias stability: < 2 ° / h
Zero bias repeatability: < 2 ° / h
Scale factor nonlinearity: < 500ppm
Working voltage: + 5V
Output mode: RS422
Operating temperature: – 40 ~ + 60 ° C
Weight: < 200g
Range: ± 500 ° / S
Bandwidth: ≥ 200Hz
Zero bias stability: < 2 ° / h
Zero bias repeatability: < 2 ° / h
Scale factor nonlinearity: < 500ppm
Working voltage: + 5V
Output mode: RS422
Operating temperature: – 40 ~ + 60 ° C
