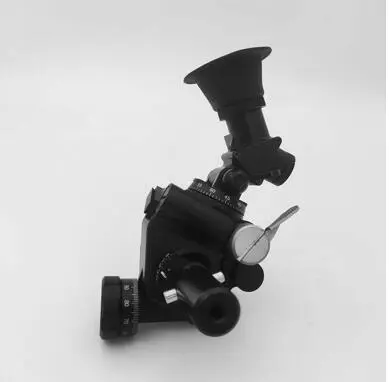

The 60mm mortar sight is a sight for 60mm mortars to observe, aim and shoot. This product can accurately set the shooting angle to the target according to different types of bullets and different target distances, and can accurately implement distance correction and azimuth correction according to the shooting status. This product can be used for direct or indirect aiming. This product also has the characteristics of accurate installation, reliable withdrawal, quick and convenient, etc.
Specification
Model: VA-PI60
Magnification: 2×
FOV: 11°
Exitpupildiameter: 4mm
Exitpupildistance: 20mm
Resolution: ≤25″
Directioncorrectionrange: 0°～360°
Directioncorrectionaccuracy: ≤3mil
Highandlowmeterrange: 45°～85°
Highandlowmeteraccuracy: ≤2mil
Operatingtemperature: -40℃～+50℃
StorageTemperature: -50℃～+70℃
Weight: ≤450g
Interface: Plug-ininterface
Representative Specifications (indicative)
| Parameter | Typical Value / Range | Notes |
|---|---|---|
| Compatibility | Standard 60 mm mortars | Plug-in interface; modular mounting |
| Sight type | Optical (with optional digital augmentation) | Provides direct line-of-sight and/or electronic readout |
| Weight | 0.5–1.2 kg | Light enough for rapid deployment |
| Dimensions | ~150 × 100 × 50 mm | Compact for field portability |
| Field-of-view | 6°–8° (typical) | Depends on optical configuration |
| Accuracy | ±0.5 mils (optical) | Typical precision for indirect fire aiming |
| Adjustment range | Elevation: ±20° | Azimuth: ±15° adjustable on mount |
| Environmental rating | Waterproof, dustproof, shock-resistant | Field-grade, operational in harsh climates |
| Power (optional digital version) | 2 × AA or rechargeable battery | Runtime: 8–12 hours continuous operation |
| Mounting | Plug-in, tool-free installation | Rapid attachment/detachment from mortar bracket |
| Crew | 1 operator | Can be integrated with mortar crew operations |
| Calibration | Manual or automated (digital) | Quick field calibration supported |
Key Features
-
Plug-in modular interface: Enables rapid installation/removal without tools, compatible with standard 60 mm mortars.
-
Precision aiming: Optical or electronic components allow accurate azimuth and elevation adjustments.
-
Durable construction: Rugged, weather-resistant housing suitable for harsh field conditions.
-
Lightweight and portable: Minimal weight addition to the mortar system, maintaining mobility.
-
Training and operational use: Suitable for both live-fire exercises and field deployment.
-
Integrated reticle system: Clear markings for range, elevation, and windage corrections.
-
Optional digital interface: Can interface with fire-control systems or electronic range calculators.
