1 Quad redundancy CPU structure
2 Provide 2-channel of RS422 serial interface for each redundancy
3 Provide watchdog for each redundancy
4 Bus function module realized by external interface integrated board
5 Discrete function module realized by using discrete simulation board
6 Analog function module realized by analog emulator
7 Power module realized by power board
8 The external power supply of the chassis powered by AC 220V
Product Description

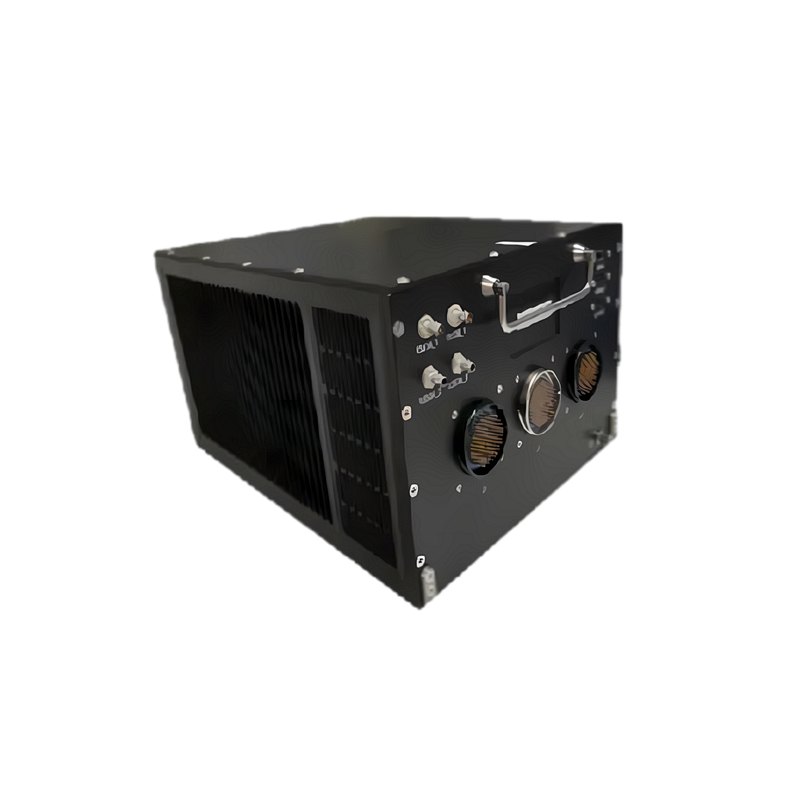

The device adopts a centralized architecture with quad similar redundancy structure. The channels are based on LBE serial bus and CCDL. Every functionboard is connected with the bus in the form of resources, the device provides basic hardware platform for the software development, testing, comprehensive verification and digital closed-loop of the development course of the flight control system.
Performance Parameters
Redundancy design ……….. Quad redundant CPU structure
Bust ype ……….. LBE serial bus and CCDL
Serial port ……….. Provide 2-way of RS422 serial port interfaces per redundancy
Watchdog……….. Every redundancy of flight control computer owns watchdog function
Discrete……….. 64-way discrete input and 64-way discrete output
Analog quantity ……….. 48-channel analog input and 48-channel analog output
Power supply ……….. DC 28V input
Working Environment
Temperature range ……….. -10℃～65℃
Relative humidity ……….. 5﹪～95﹪, no condensation
Shock vibration ……….. 5g
General Specifications
External dimensions (L×W×H) (without ear) ……….. 700×320×350 mm
Case material ……….. Aviation aluminum alloy
Typical Applications
Construction of automatic test systems
Laboratory automation, research and design verification
Flight control computer, the core of the UAV flight control system, is the solution device of control system to realize the control law calculation function of flight control system and output control command to servo system. Flight controlcomputer is also the management part of all the system, which is responsible for redundancy management calculation, logical judgment, working mode conversion, and achieves the declaration of system state, fault alarm and BIT function of the whole flight control system. It provides signal interfaces from other parts of the system and from the system to the on-board cross-link equipment on the machine and processes the signals.
We can customize redundancy flight control computers according to customers’ demands.
●Achieving redundancy management and self-test function through hardware and software to meet the reliability requirements of flight computer and flight control system reliable.
● According to the information of command sensor and flight movement sensor, it performs control law calculation and the result is input to servo system to control motion of rudder actuator.
● Self-test capability to meet the system testability requirements and providing test circuits for other parts
● Providing power supply for some other external parts
Selection Guide for Flight Control Computer
| Model No. | Description | Bus Type | Working Temperature | Portable | Embedded Controller | Max Output Power |
| ZY 8DN04-T1 | Flight Control Computer | CCDL | -10℃～+65℃ | – | √ | – |
| ZY 8DN01 | Flight Control Computer | CCDL | -10℃～+65℃ | – | √ | – |
| ZY 8DN02 | Flight Control Computer | 659 | -10℃～+65℃ | – | √ | – |
| ZY 8DN03 | Flight Control Computer | LBE | -10℃～+65℃ | – | √ | – |
| ZY12204 | PC104 Framework Ruggedized Computer | PC104 | -40℃～+60℃ | √ | √ | 200W |
