Key Characteristics and Capabilities:
-
Guidance System: This is the core of the WS-22’s capability. Each rocket is equipped with an advanced guidance package, which includes:
-
INS/GPS (Inertial Navigation System/Global Positioning System): For mid-course navigation. It almost certainly uses China’s BeiDou satellite navigation system for enhanced accuracy and operational independence.
-
Terminal Seeker (Likely Option): Some sources suggest certain variants may incorporate a terminal seeker (e.g., imaging infrared or IIR) for engaging moving targets, though its primary role is against fixed targets.
-
-
Warhead: The rockets carry a unitary high-explosive (HE) warhead. The key is that precision guidance allows each large warhead to achieve a direct hit on a specific point target, like a building or hangar, rather than saturating an area. Some variants may also exist with submunitions or other specialized warheads.
-
Range and Accuracy: The WS-22 is defined by its extreme performance:
-
Range: It has an estimated maximum range of approximately 70 to 100 kilometers (43 to 62 miles). Some reports suggest extended-range variants could reach even further.
-
Accuracy: It boasts a very low Circular Error Probable (CEP), likely less than 10 meters. This precision allows it to be used effectively against point targets, a function traditionally reserved for much more expensive missiles or airstrikes.
-
-

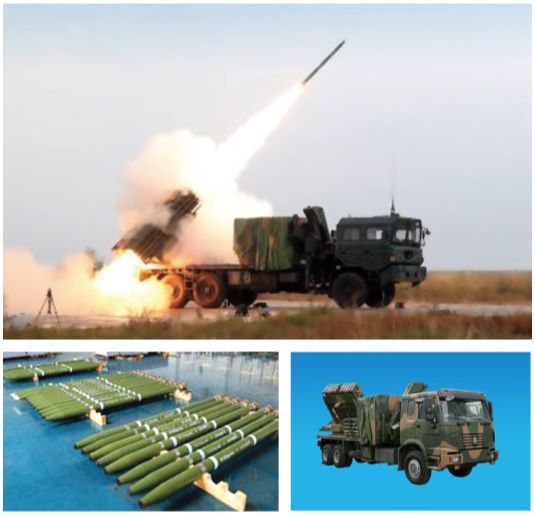

Launch Platform: The WS-22 is typically integrated with a high-mobility launch vehicle.
-
The most common platform is a 8×8 military truck with two pods, each containing 4 rockets, for a total of 8 rockets per vehicle.
-
This system is designed for shoot-and-scoot tactics: fire a salvo and immediately relocate to avoid counter-battery fire.
-
Comparison with Similar Weapons:
The WS-22 sits at the top end of the conventional rocket artillery spectrum in terms of range and precision.
| Feature | Chinese WS-22 | US M142 HIMARS (GMLRS) | Chinese WS-2 | Short-Range Ballistic Missile (e.g., MGM-140 ATACMS) |
|---|---|---|---|---|
| Caliber / Type | ~370mm Guided Rocket | 227mm Guided Rocket | 400mm Unguided Rocket | 610mm Ballistic Missile |
| Guidance | GPS/INS (BeiDou) | GPS/INS | Unguided / Basic INS | GPS/INS |
| Range | ~70-100 km | ~70+ km | ~200 km (low accuracy) | ~300 km |
| Accuracy (CEP) | <10 meters | <5 meters | >500 meters | ~10 meters |
| Role | Long-Range Precision Strike | Long-Range Precision Strike | Long-Range Area Saturation | Deep Precision Strike |
-
vs. the US GMLRS (HIMARS): The WS-22 is China’s direct equivalent to the US GMLRS rocket. They fulfill the same tactical role: providing precise, long-range fire support. The GMLRS is a mature and combat-proven system with exceptional accuracy. The WS-22 represents China achieving a similar capability.
-
vs. the WS-2: This comparison highlights a generational leap. The older WS-2 has a longer range but is unguided, making it only suitable for saturating a very large area. The WS-22 is shorter-range but is precise enough to hit individual buildings within a city from dozens of kilometers away.
-
vs. a Ballistic Missile (e.g., ATACMS): The WS-22 is a rocket, not a ballistic missile. It is generally cheaper and has a shorter range than a tactical ballistic missile like the US ATACMS. However, its precision makes it suitable for engaging many of the same types of targets, effectively filling a similar niche at a lower cost and with higher volume.
Strategic Significance:
The WS-22 is a potential game-changer for several reasons:
-
Revolutionizes Rocket Artillery: It transforms rocket artillery from an area saturation weapon into a precision-strike system. A single launcher can now engage up to 8 different point targets with high accuracy in a single volley.
-
Enables Deep Strikes: Its range allows it to engage targets deep behind the front lines, such as command posts, logistics hubs, air defense units, and airfield facilities, disrupting an enemy’s rear operations.
-
Provides a Cost-Effective Solution: It offers a more economical alternative to using short-range ballistic missiles for many precision strike missions, allowing for sustained operations.
-
Complements the “System Destruction” Warfare Doctrine: The WS-22 is a key tool for the PLA’s concept of destroying an enemy’s operational system by precisely targeting its key nodes (command, logistics, sensors) rather than just attacking its field forces.
In summary, the WS-22 is a precision-guided long-range rocket system that represents the modern pinnacle of conventional rocket artillery. It provides the PLA with a highly accurate, responsive, and devastatingly effective fire support capability that can shape the battlefield and strike critical targets from vast distances, making it a cornerstone of China’s modern artillery forces.
