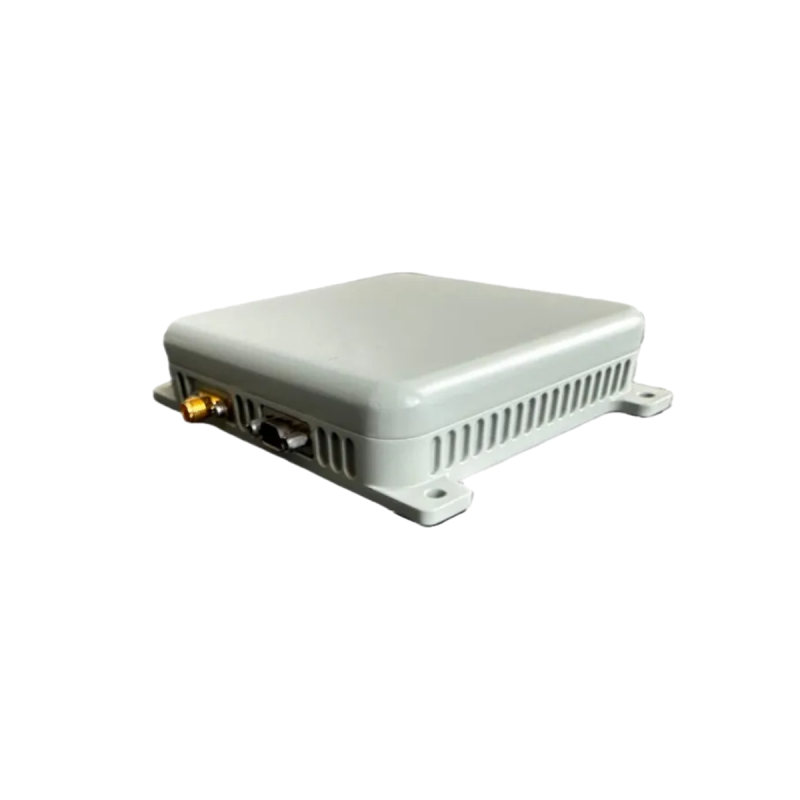

The anti-jamming system is designed to receive, amplify, down-convert, filter, and perform anti-jamming processing for 4 channels of BDS_B1 and GPS_L1 frequency signals. It operates on a power supply voltage of +12V to +32V. It is composed of composed of four main components: antenna array, RF component, anti-jamming processing component, and receiver. It can counteract three broadband jamming sources, providing high-precision positioning and accurate timing even under strong interference conditions.
♦ 4-channels: BDS_B1 and GPS_L1 antenna array；
♦ Input frequencies：
B1: 1561.098MHz ± 2.046MHz；
L1: 1575.42MHz ± 1.023MHz；
♦ RF output power: -55dBm to -65dBm；
♦ Impedance: 50 Ohms ；
♦ Supports BDS, GPS, and GAL positioning, signal reception, decoding, and information output, providing time, position, and other parameters；
♦ Anti-jamming types: Capability to suppress various jamming types such as broadband, frequency sweep, pulse, and combination jamming；
♦ Multi-jamming resistance: Capable of countering 3 interference sources from different directions simultaneously；
♦ Nominal Wideband Suppression(Single direction): Jamming-to-signal ratio (JSR) ≥ 95dB@-130dBm；
♦ Nominal Wideband Suppression(Three directions): Jamming-to-signal ratio (JSR) ≥ 85dB@-130dBm；
♦ Broadband jamming suppression capability: ≥ 55dB；
♦ Operating temperature: -40℃ to +75℃；
♦ Storage environment: -45℃ to +80℃；
♦ Dimensions: (100.0 ± 0.5)mm × (100.0 ± 0.5)mm × (26.0 ± 0.5)mm；
♦ Power consumption: ≤ 8W；
♦ Weight: ≤ 300g（Aluminum alloy material）
≤ 350g（Magnesium alloy material）
♦ Positioning accuracy: ≤ 10m；
♦ Velocity accuracy: ≤ 0.2m/s.
