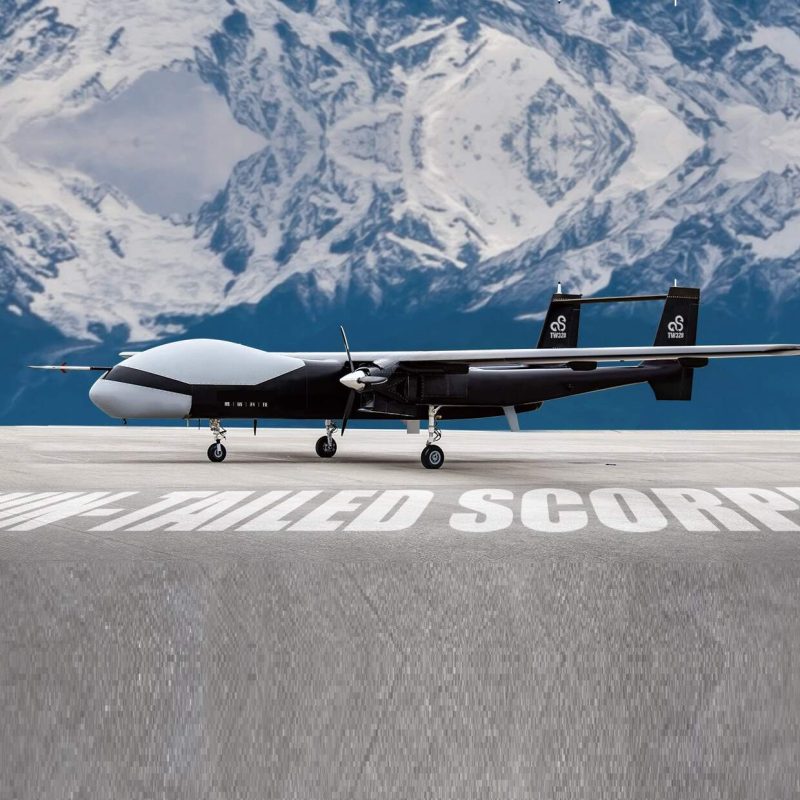

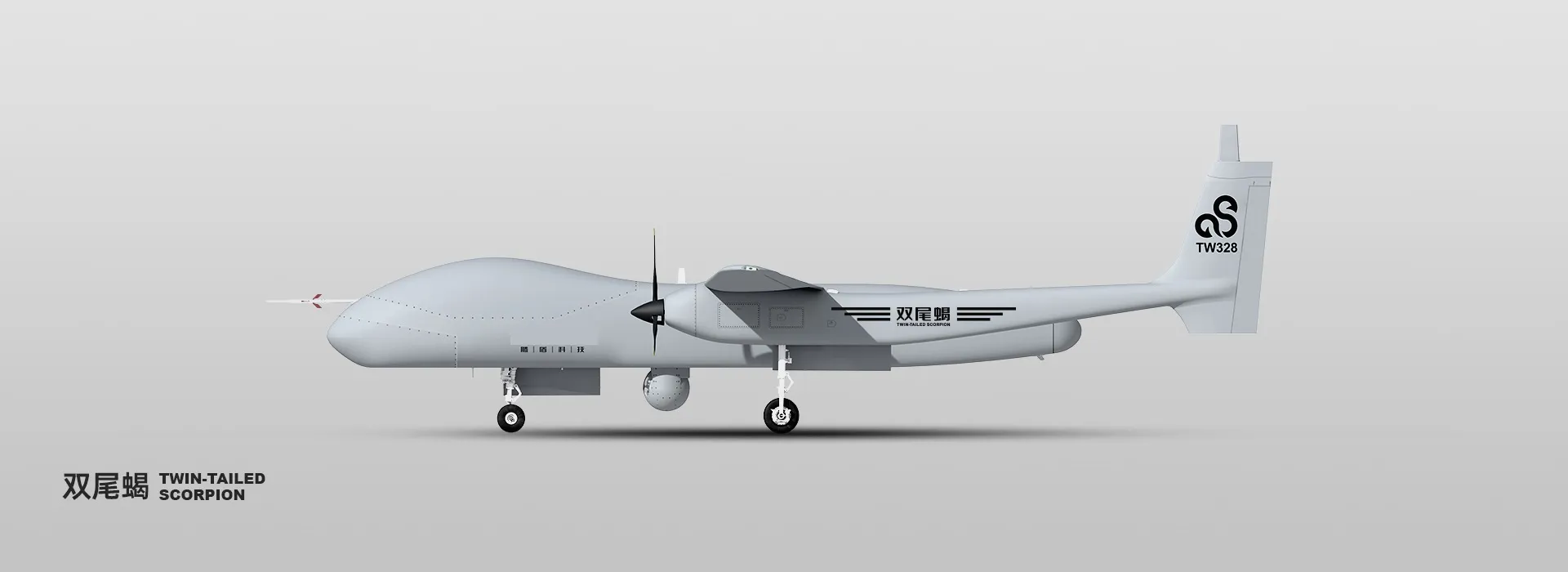

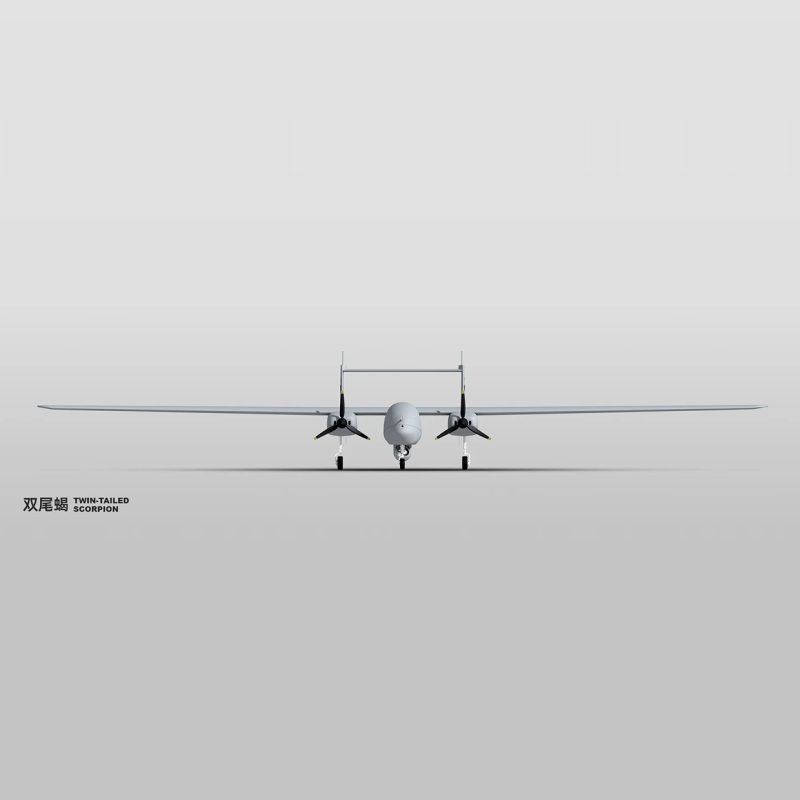

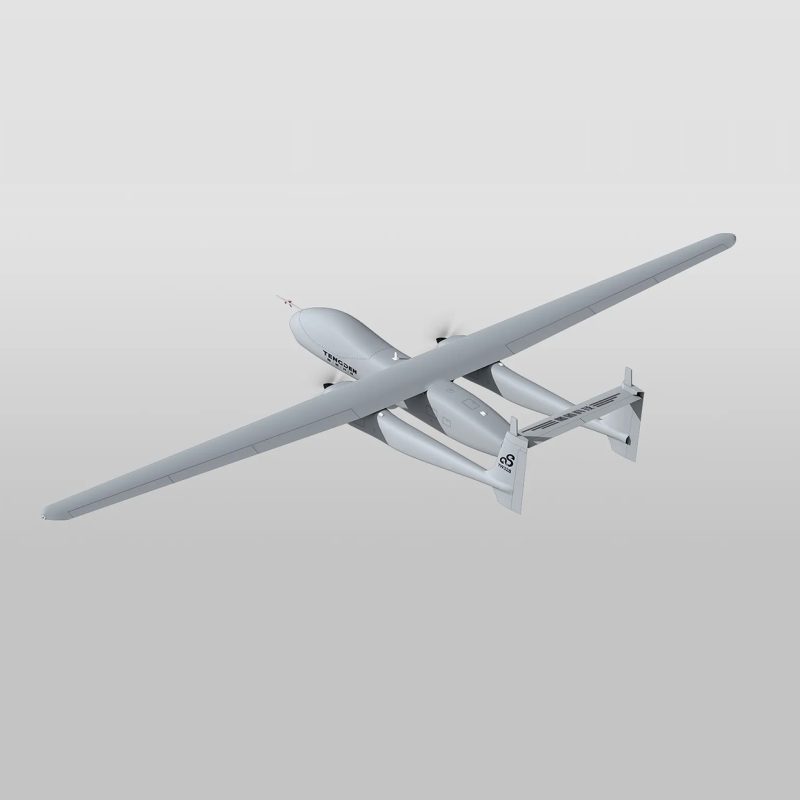

TWIN-TAILED SCORPION · TW328 (TB) UAV
The Twin-tailed Scorpion UAV is the world’s first type of large-scale double-engine, modular, multi-role MALE fixed wing UAS. Its double-engine configuration remarkably improves the system reliability and flight safety, endows the UAV with prominent advantages in terms of plateau and maritime deployment capability and adaptability to complicated weather conditions and geographical environment. Double generators equipped ensure the UAV to supply sufficient power to various payloads it carries. The double-engine and double-generator configuration and the “廿”-type aerodynamic layout design with a high aspect ratio and double tail-booms make the UAV especially applicable to the commercial field.
Specification of TWIN-TAILED SCORPION · TW328 (TB) UAV
Length: 10m
Wingspan: 20m
Height: 3.1m
MTOW 2800kg
Max. Range: 6000km
Max. Endurance: 35h
Max. Speed: 300km/h
Service Ceiling:8000m
Power Supply Capacity: 10kw

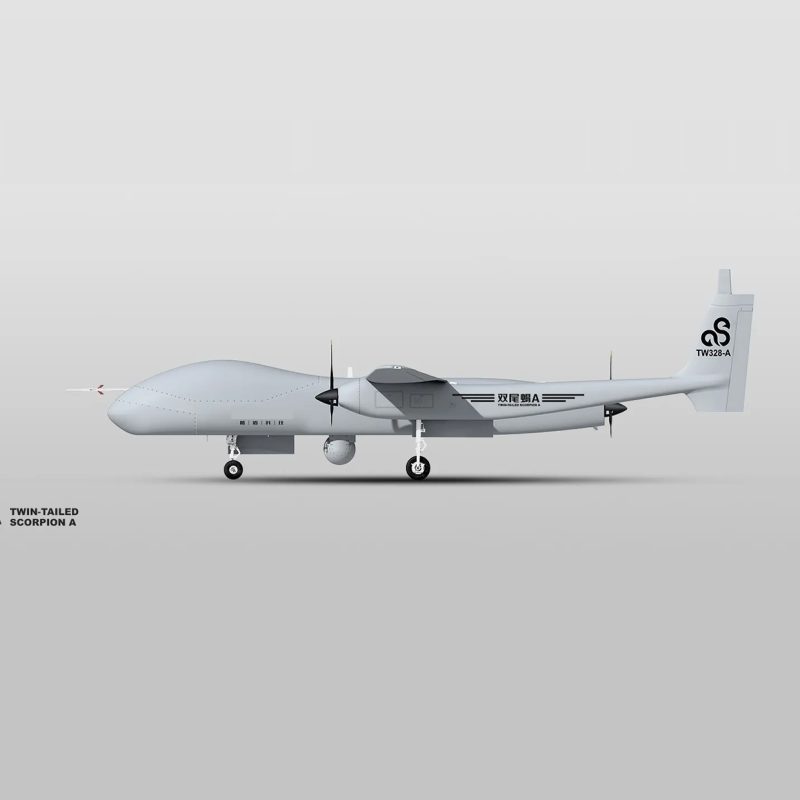

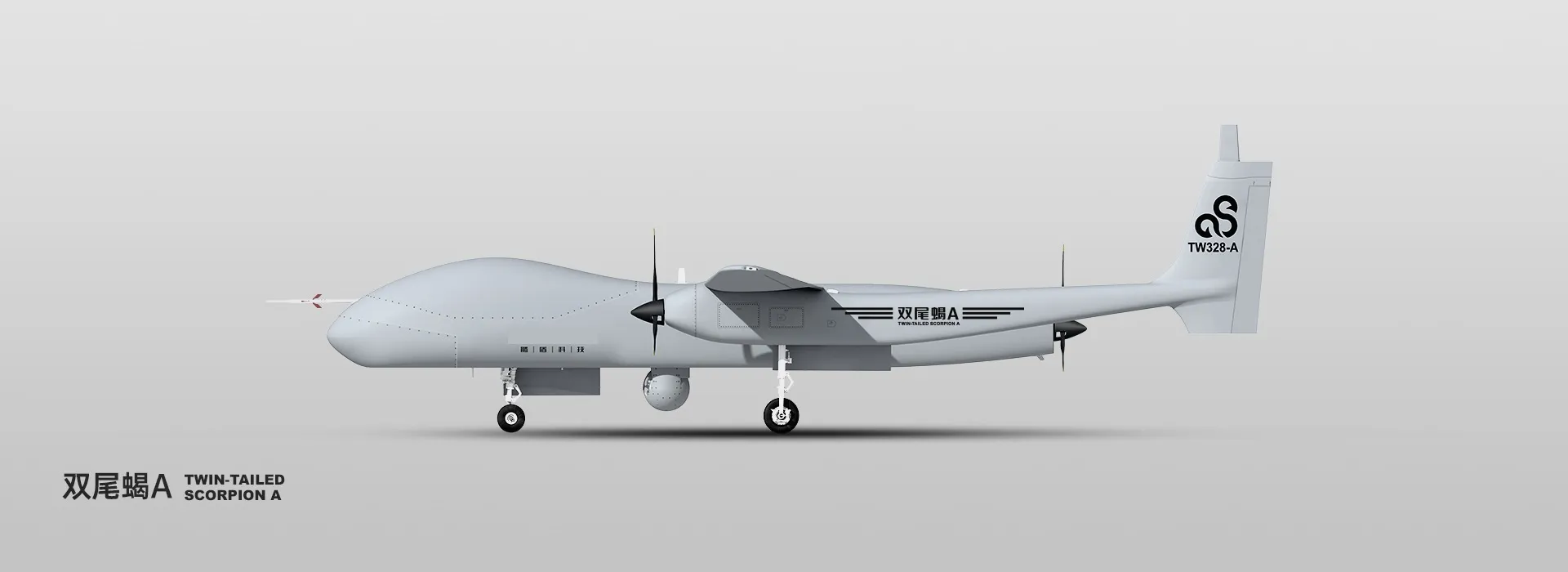

TAILED SCORPION · TW328-A (TB-A) UAV
Specification of TAILED SCORPION · TW328-A (TB-A) UAV
Wingspan :20.2m
Height:3.1m
MTOW :3250kg
Max. Range :8000km
Max. Endurance :40h
Max. Speed:380km/h
Service Ceiling:10000m
Power Supply Capacity :15kw
