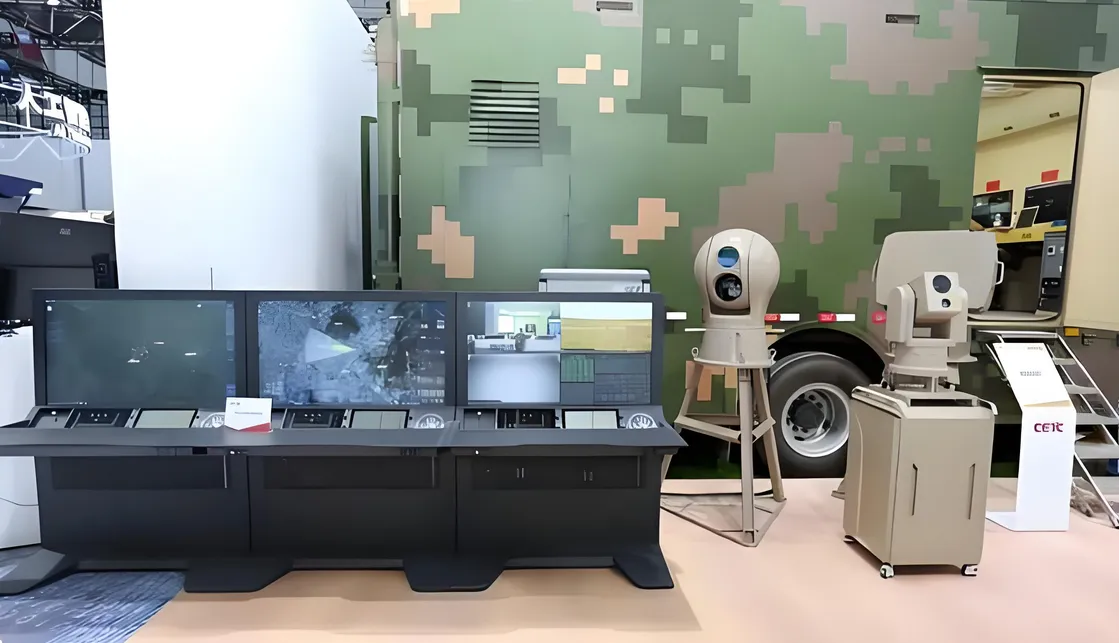

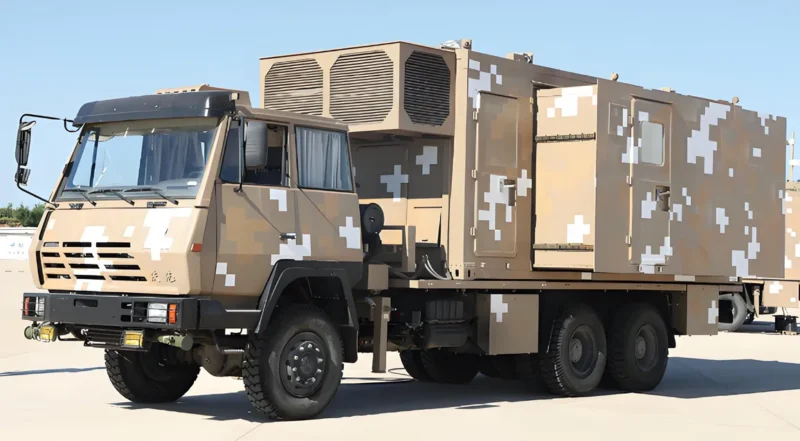

The Skyshield anti-UAV laser system uses high-energy fiber lasers with a standard power of up to 30 kilowatts, which can achieve a strike in seconds within 4 kilometers. The laser has fast light output, high precision, low cost, can quickly focus the beam, and can ablate and destroy the key structures of the UAV, completely rendering the target ineffective in just a few seconds.
The SkyShield system deployed to protect Saudi Patriot missile launchers reportedly intercepted 21 Houthi drones without any leaks.
Key Features:
- High-Power Laser Engagement: Utilizes focused laser beams to disable drones by damaging critical components (e.g., motors, cameras, or control surfaces).
- All-Weather Operation: Designed to perform reliably in adverse weather conditions including rain, fog, and dust.
- Precision Targeting: Advanced tracking algorithms ensure accurate beam delivery even on fast-moving or evasive targets.
- Low Cost per Shot: Significantly more economical than kinetic interceptors or radio frequency jammers.
- Non-Kinetic & Non-RF Solution: Minimizes collateral damage and avoids interference with legitimate communications.
- Modular Design: Can be integrated onto fixed sites, mobile platforms, or naval vessels.
- AI-Powered Threat Recognition: Incorporates machine learning for improved target classification and reduced false alarms.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Laser Type | Fiber Laser / Solid-State Laser |
| Output Power | 10 kW – 50 kW (adjustable) |
| Effective Range | Up to 5 km (dependent on atmospheric conditions) |
| Target Detection Range | Up to 8 km (with integrated radar/EO/IR) |
| Target Types | Group 1–3 UAS (up to 25 kg MTOW) |
| Engagement Time | 5–30 seconds (depending on range and target) |
| Beam Accuracy | < 0.1 mrad |
| Tracking System | Electro-Optical/Infrared (EO/IR), Radar, RF Detection (optional) |
| Power Supply | AC 220V / 380V or DC Hybrid (vehicle-mounted) |
| Operating Temperature | -20°C to +55°C |
| Dimensions (main unit) | 1.8 m × 1.2 m × 1.0 m |
| Weight | Approx. 450 kg |
| Deployment Time | < 5 minutes |
| Control Interface | Remote console with real-time situational display |
Applications:
- Critical Infrastructure Protection: Safeguard power plants, airports, oil & gas facilities, and communication hubs.
- Military Base Security: Defend forward operating bases, command centers, and logistics depots.
- Public Event Security: Ensure safety during large gatherings, sports events, and political summits.
- Border & Perimeter Defense: Monitor and neutralize drones attempting illegal surveillance or payload delivery.
- VIP & Government Facility Protection: Provide discreet, non-lethal defense for embassies, government buildings, and residences.
Conclusion:
The Skyshield Laser Anti-Drone System represents the next generation of air defense technology—offering speed-of-light response, precision engagement, and operational flexibility. As the threat landscape evolves, Skyshield delivers a reliable, future-proof solution to maintain airspace sovereignty and security in an increasingly drone-populated world.
