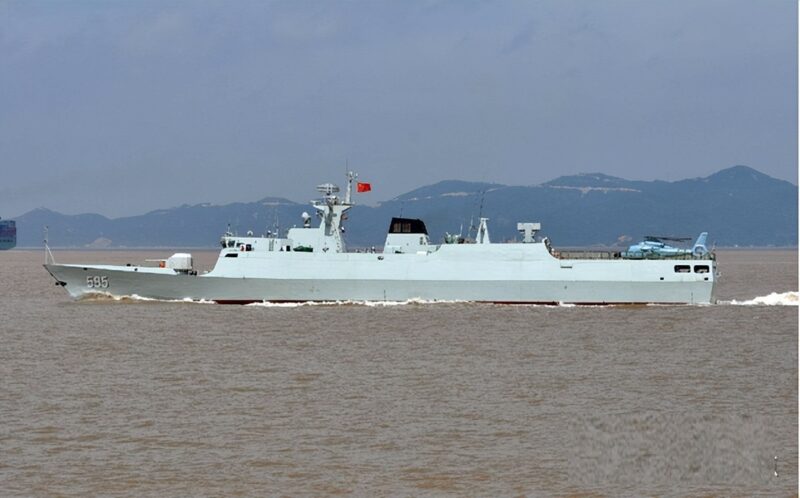

Type 056 Corvette (English: Type 056 Corvette) NATO code name: Jiangdao Class Corvette (Jiangdao Class Corvette) is a new generation of multi-purpose light frigate launched by the Chinese People’s Liberation Army Navy in 2012.
The ship of this class adopts the deep V and long bridge ship shape, which has good seaworthiness and can provide larger hull space. Stealth design is adopted, the ship floats outward, and the superstructure is inclined inward, forming a broken line running through the front and rear of the hull. The equipment on the ship surface, such as small boats and torpedo tubes, are all shielded, and the radar stealth effect is good. There is a helicopter deck at the stern of the ship, which has the ability to operate helicopters, but there is no hangar.
The Type 056 built by the Chinese Navy is mainly used for offshore defense, undertakes daily patrol tasks, and provides support and guarantee for relevant maritime law enforcement agencies to replace the previous ship with a long age, low tactical and technical indicators, outdated weapons and equipment, and personnel work and living environment. The Type 053H frigate series and the Type 037 submarine hunting submarine series are poor and difficult to adapt to the combat missions of the new era.
Representative Specifications (indicative)
| Parameter | Value / Range | Notes |
|---|---|---|
| Displacement | ~1,300–1,500 tonnes | Full load |
| Length | ~90 m | Hull length |
| Beam | ~11 m | Maximum width |
| Draft | ~3.1 m | Operational depth |
| Propulsion | Combined diesel or diesel-electric | 2 shafts |
| Maximum Speed | ~25–28 knots | Depends on maintenance and sea state |
| Range | ~3,500–4,000 km | At cruising speed |
| Crew | 60–80 personnel | Reduced manning possible with automation |
| Armament Options | 76 mm naval gun, anti-ship missiles, torpedoes, CIWS | Modular based on mission |
| Sensors | Radar, sonar, electronic warfare suite | Refurbished or upgraded options available |
| Aviation Facilities | Small helipad | Supports light helicopters or UAVs |
| Environmental Rating | All-weather, sea state 5–6 | Suitable for littoral and coastal operations |
Key Features
-
Multi-Role Capability: Designed for anti-surface, anti-submarine, and maritime patrol operations.
-
Refurbished & Maintained: Second-hand vessels are inspected, overhauled, and restored to operational readiness.
-
Armament Flexibility: Can be equipped with anti-ship missiles, naval guns, torpedoes, and short-range air defense systems.
-
Sensors & Electronics: Includes radar, sonar, navigation, and communication systems suitable for surveillance and combat.
-
Speed & Maneuverability: Optimized hull design for high-speed coastal and open-sea operations.
-
Modular Design: Configurable for patrol, escort, reconnaissance, or training roles.
-
Crew Efficiency: Designed for reduced crew operation without compromising combat effectiveness.
