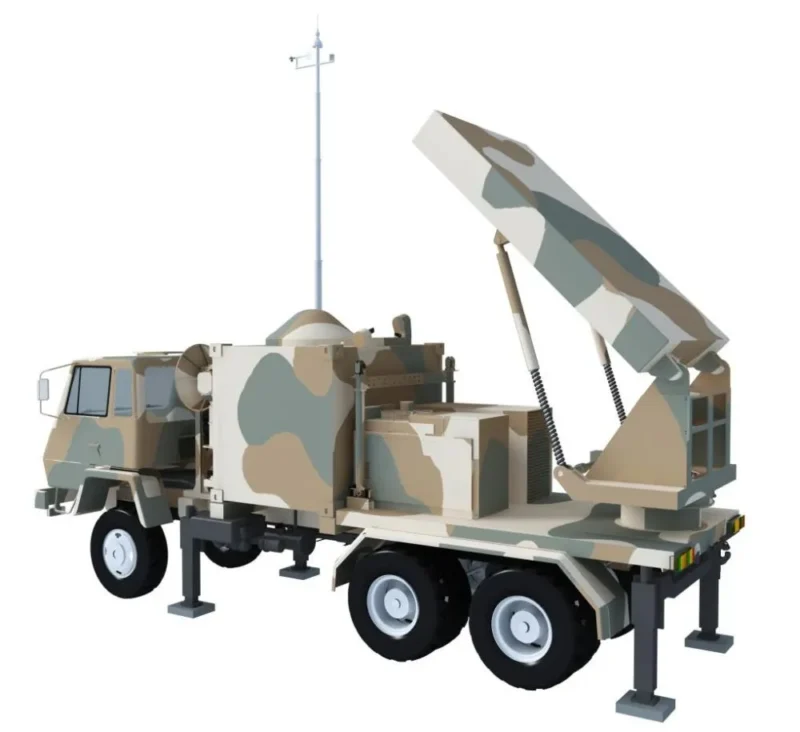

he GR-150XL multi-functional integrated weather detection radar system is a mobile weather station, which adopts a single-vehicle structure and integrates the main weather detection and environmental monitoring equipment. It has the characteristics of fast mobility and flexible deployment; the system is mainly used to monitor strong convective weather It can quickly obtain meteorological information such as precipitation, atmospheric wind field, and various environmental elements, and can perform meteorological support tasks such as troop maneuver operations, daily training, and weapon tests, and can timely and accurately collect the data of various meteorological elements. It is provided to decision-making organs and combat troops to provide the basis and technical parameters for the chief’s decision-making and troop actions; it can also provide emergency comprehensive meteorological information for various non-combat military operations, emergency rescue and disaster relief, and response to special extreme weather.
The system can automatically identify disastrous weather, and has the ability of automatic alarm, and can automatically form and display a variety of weather products.
Features
The GR-150XL multi-functional integrated weather detection radar system is a mobile weather station, which adopts a single-vehicle structure and integrates the main weather detection and environmental monitoring equipment. It has the characteristics of fast mobility and flexible deployment; the system is mainly used to monitor strong convective weather It can quickly obtain meteorological information such as precipitation, atmospheric wind field, and various environmental elements, and can perform meteorological support tasks such as troop maneuver operations, daily training, and weapon tests, and can timely and accurately collect the data of various meteorological elements. It is provided to decision-making organs and combat troops to provide the basis and technical parameters for the chief’s decision-making and troop actions; it can also provide emergency comprehensive meteorological information for various non-combat military operations, emergency rescue and disaster relief, and response to special extreme weather.
The system can automatically identify disastrous weather, and has the ability of automatic alarm, and can automatically form and display a variety of weather products.
Main Feature
Integrated design of detection function;
Flexible and convenient mobile deployment capabilities;
L+X band integrated active phased planar array antenna;
Distributed all-solid-state transmitter;
Ultra-high sensitivity, large dynamic digital receiver;
High performance programmable signal processor;
Intelligent integrated weather detection and forecasting terminal;
Perfect BIT and automatic calibration function;
With disastrous weather automatic identification and alarm function.
Main Specifications
Working frequency: X-band and L-band.
Precipitation detection range
a) Monitoring distance: ≥300km (intensity);
b) Quantitative detection: ≥150km (intensity, speed, spectral width).
Wind field detection range
a) Maximum detection height: ≥3km;
b) Minimum detection height: ≤100m.
data product
a) basic data products for precipitation measurements;
a) precipitation measurement physical quantity products;
b) precipitation measurement wind field products;
c) precipitation measurement identification products;
d) Wind field measurement products.
Power supply voltage: single-phase 380V±10%, 50Hz±5%.
Machine power consumption: ≤10kW.
Representative Specifications (indicative)
| Parameter | Value / Range | Notes |
|---|---|---|
| Frequency Band | X/S-Band (depending on configuration) | High-resolution and long-range options |
| Polarization | Single or dual polarization | Optional dual polarization for enhanced precipitation detection |
| Doppler Capability | Yes | Measures radial wind speed and storm motion |
| Maximum Range | ~150–250 km | Terrain and environment dependent |
| Antenna Type | Parabolic or phased array | Rotating or fixed scanning options |
| Beamwidth | ~1° | High spatial resolution |
| Pulse Repetition Frequency | 250–1,200 Hz | Adjustable for range and resolution |
| Scan Modes | PPI, RHI, volumetric | Configurable scanning patterns |
| Data Output | Real-time digital | Compatible with meteorological and military systems |
| Power Supply | AC 220/380 V; optional mobile generator | Platform dependent |
| Environmental Rating | -30°C to +50°C; weatherproof | Suitable for field deployment |
| Mobility | Fixed, tower-mounted, or vehicle-mounted | Modular deployment options |
Key Features
-
Multifunctional Detection: Capable of monitoring precipitation, wind fields, and atmospheric disturbances.
-
High Resolution: Provides precise measurements for weather and tactical planning.
-
Rapid Doppler Analysis: Measures radial wind velocities to track storms and severe weather events in real-time.
-
Long-Range Capability: Suitable for large-area coverage in operational or tactical environments.
-
Robust & Mobile Design: Can be deployed on fixed towers, vehicles, or mobile platforms for flexible operations.
-
Advanced Signal Processing: Supports clutter suppression, target differentiation, and volumetric scanning.
-
User-Friendly Interface: Integrated software for visualization, reporting, and data export.
-
Network Integration: Optional remote monitoring and data sharing for centralized meteorological or operational command centers.
