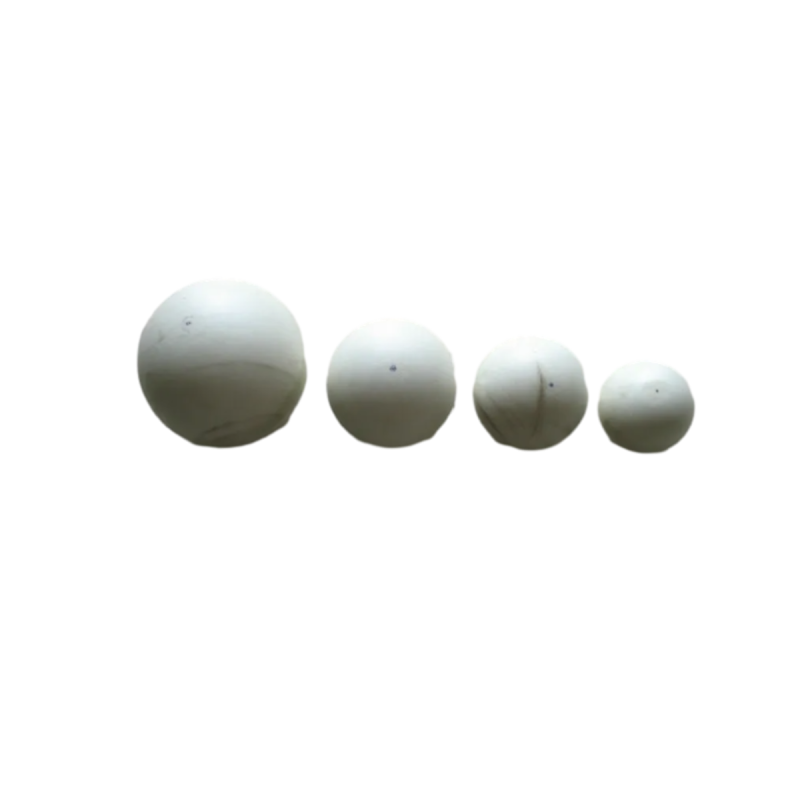

60mm luneburg lens radar reflector
RCS(dBsm): -30.38~1.65
Scattering cross section (㎡): 0.0009~1.46
Specifications (mm): φ60
Weight (g): 25
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.
| Frequency：1GHz | Frequency：3GHz | Frequency：6GHz | Frequency：10GHz | Frequency：15GHz | Frequency：25GHz | Frequency：40GHz | |||||||
| RCS （㎡） |
RCS （dBsm) |
RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) |
| 0.0009 | -30.38 | 0.008 | -20.84 | 0.03 | -14.8 | 0.09 | -10.38 | 0.2 | -6.8 | 0.57 | -2.4 | 1.46 | 1.65 |
150mm Luneburg Lens Radar Reflector
Reference frequency band (GHz): 1-40
RCS(dBsm) ;-14.5~17.4
Scattering cross section (㎡): 0.034~55.8
Specifications (mm): φ150
Weight (g): 200
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.
| Frequency：1GHz | Frequency：3GHz | Frequency：6GHz | Frequency：10GHz | Frequency：15GHz | Frequency：25GHz | Frequency：40GHz | |||||||
| RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) | RCS （㎡） | RCS （dBsm) |
| 0.034 | -14.5 | 0.3 | -5 | 1.2 | 0.9 | 3.48 | 5.4 | 7.8 | 8.9 | 21.8 | 13.3 | 55.8 | 17.4 |
200mm Luneburg Lens Radar Reflector
Reference frequency band (GHz): 1-40
RCS(dBsm): -0.95~22.4
Scattering cross section (㎡): 0.11~176.3
Specifications (mm): φ200
Weight (g): 475
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.
| Frequency: 1GHz | Frequency: 3GHz | Frequency: 6GHz | Frequency: 10GHz | Frequency: 15GHz | Frequency: 25GHz | Frequency: 40GHz | |||||||
| RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) |
| 0.11 | -9.5 | 0.9 | -0.03 | 3.9 | 5.9 | 11 | 10.4 | 24.8 | 13.9 | 68.9 | 18.3 | 176.3 | 22.4 |
300mm Luneburg Lens Radar Reflector
Reference frequency band (GHz): 1-40
RCS(dBsm): -2.5~29.5
Scattering cross section (㎡): 0.5~892.9
Specifications (mm): Φ300
Weight (g): 1680
Angle (°) 120
Note: ® is the center point of the incident direction of the RCS.
| Frequency: 1GHz | Frequency: 3GHz | Frequency: 6GHz | Frequency: 10GHz | Frequency: 15GHz | Frequency: 25GHz | Frequency: 40GHz | |||||||
| RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) |
| 0.5 | -2.5 | 5 | 7 | 20 | 13 | 55.8 | 17.4 | 125.5 | 20.9 | 348.8 | 25.4 | 892.9 | 29.5 |
400mm Luneburg Lens Radar Reflector
Reference frequency band (GHz): 1-40
RCS(dBsm): 1.2~33.2
Scattering cross section (㎡): 1.3~2116.6
Specifications (mm): Φ400
Weight (g): 3800
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.
| Frequency: 1GHz | Frequency: 3GHz | Frequency: 6GHz | Frequency: 10GHz | Frequency:15GHz | Frequency: 25GHz | Frequency: 40GHz | |||||||
| RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) |
| 1.3 | 1.2 | 11.9 | 10.7 | 47.6 | 16.7 | 132 | 21.2 | 297.6 | 24.7 | 826.8 | 29 | 2116.6 | 33.2 |
1000mm Luneburg Lens Radar Reflector
Reference frequency band (GHz): 1-40
RCS(dBsm): 16.3~50.4
Scattering cross section (㎡): 43~110244.5
Specifications (mm): Φ1000
Weight (g): 59375
Angle (°): 120
Note: ® is the center point of the incident direction of the RCS.
| Frequency: 1GHz | Frequency: 3GHz | Frequency: 6GHz | Frequency: 10GHz | Frequency: 15GHz | Frequency: 25GHz | Frequency: 40GHz | |||||||
| RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) | RCS（㎡） | RCS（dBsm) |
| 43 | 16.3 | 620.1 | 27.9 | 2480.5 | 33.9 | 6890 | 38.3 | 15503 | 41.9 | 43064.2 | 46.3 | 110244.5 | 50.4 |
2.

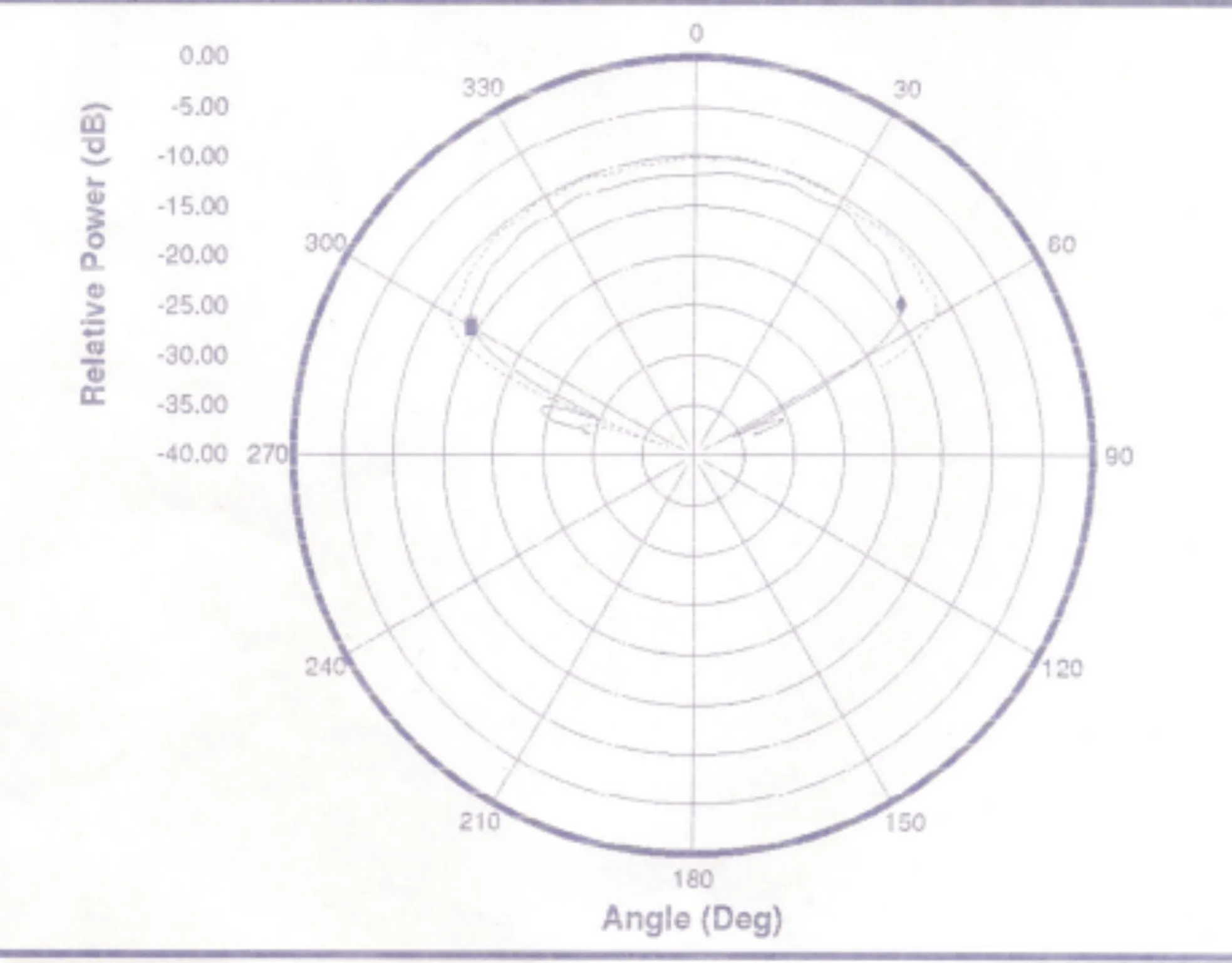

| Luneberg Lens Radar Reflector 2.7 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |

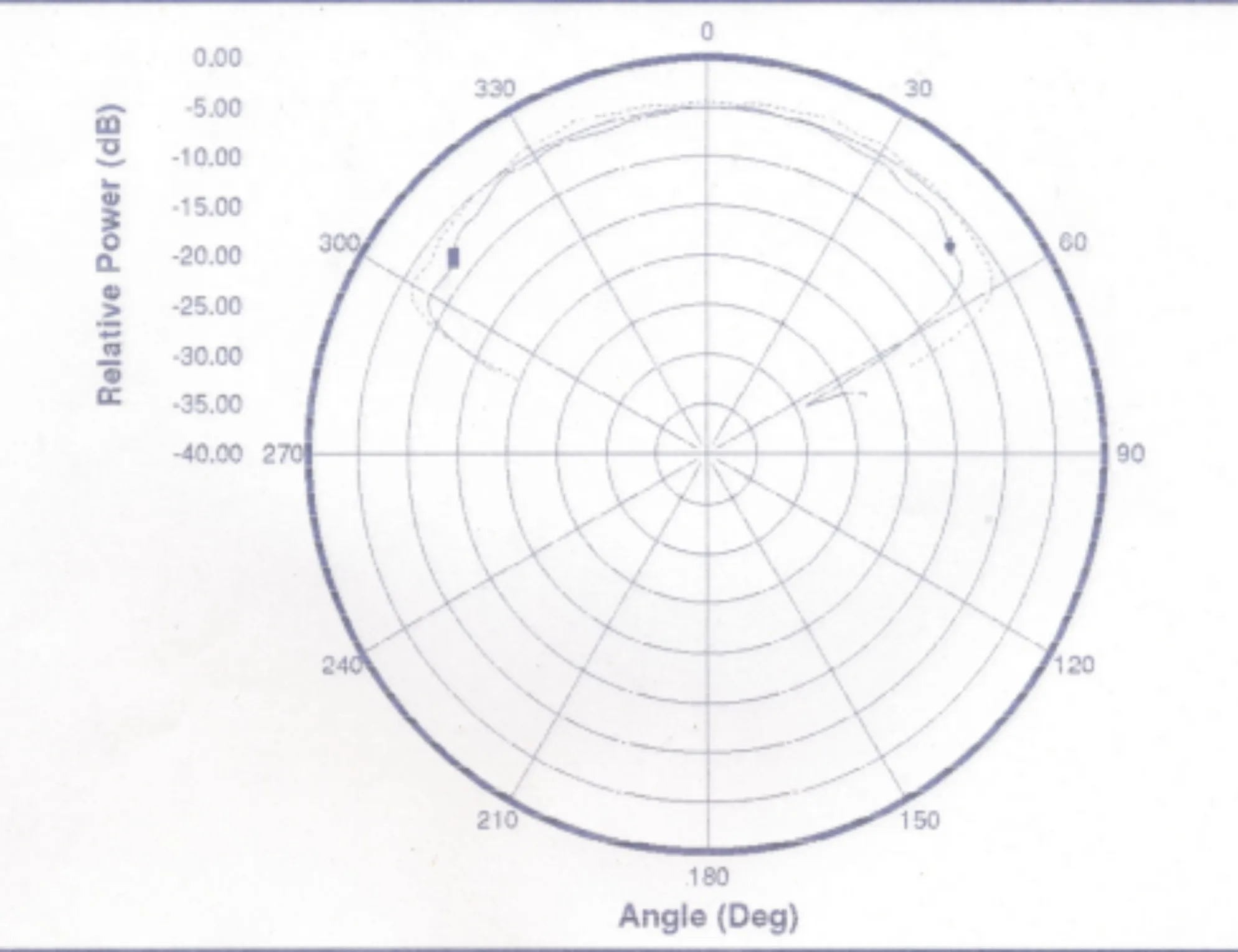

| 9991 | 2.7 | 0.25 | 10 | 80 | Rectilinear | 0.08 | M | |
| Luneberg Lens 4.0 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |

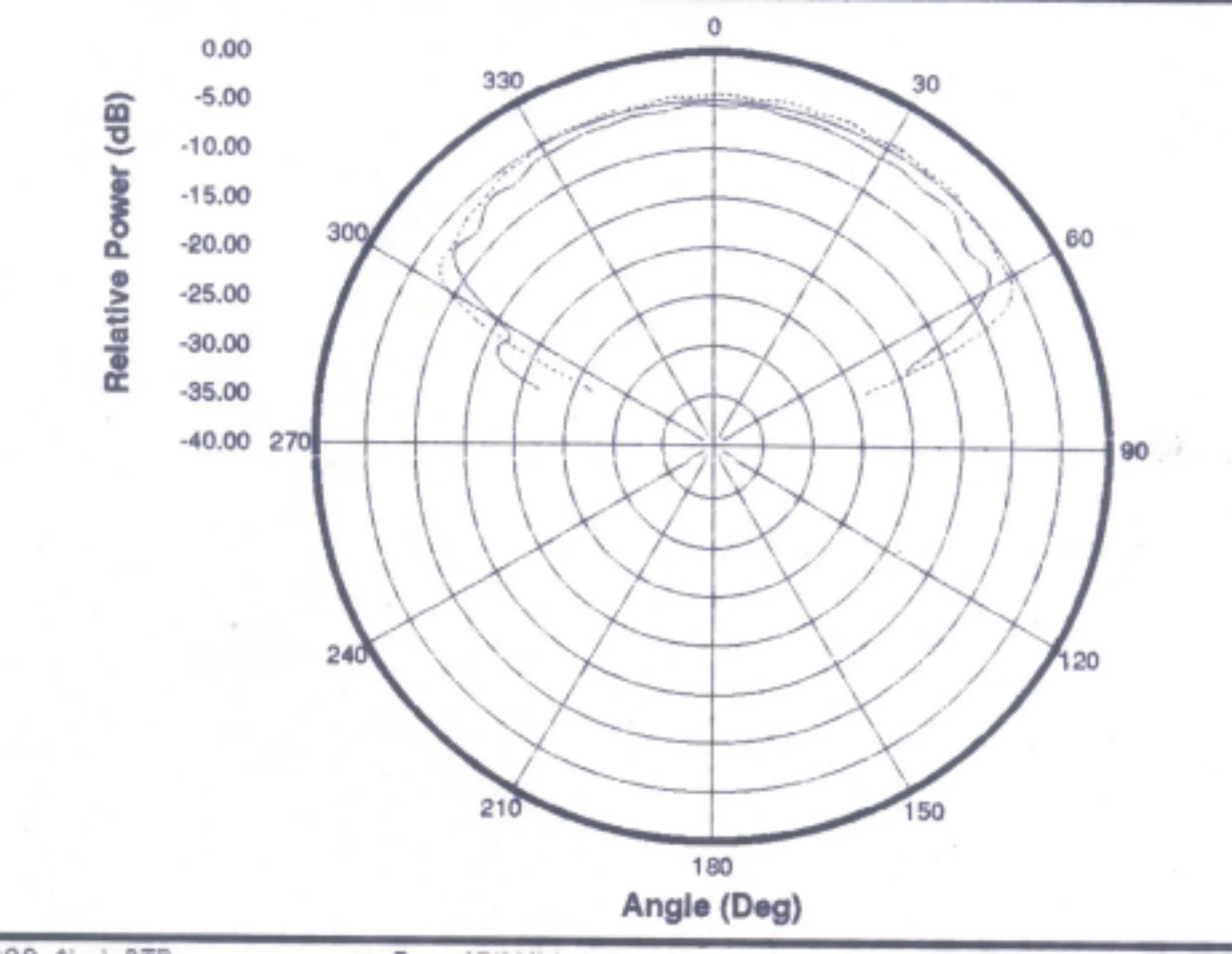

| 9910 | 4.0 | 0.7 | 10 | 90 | Rectilinear | 0.18 | M | |
| Luneberg Lens Radar Reflector 5.3 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |

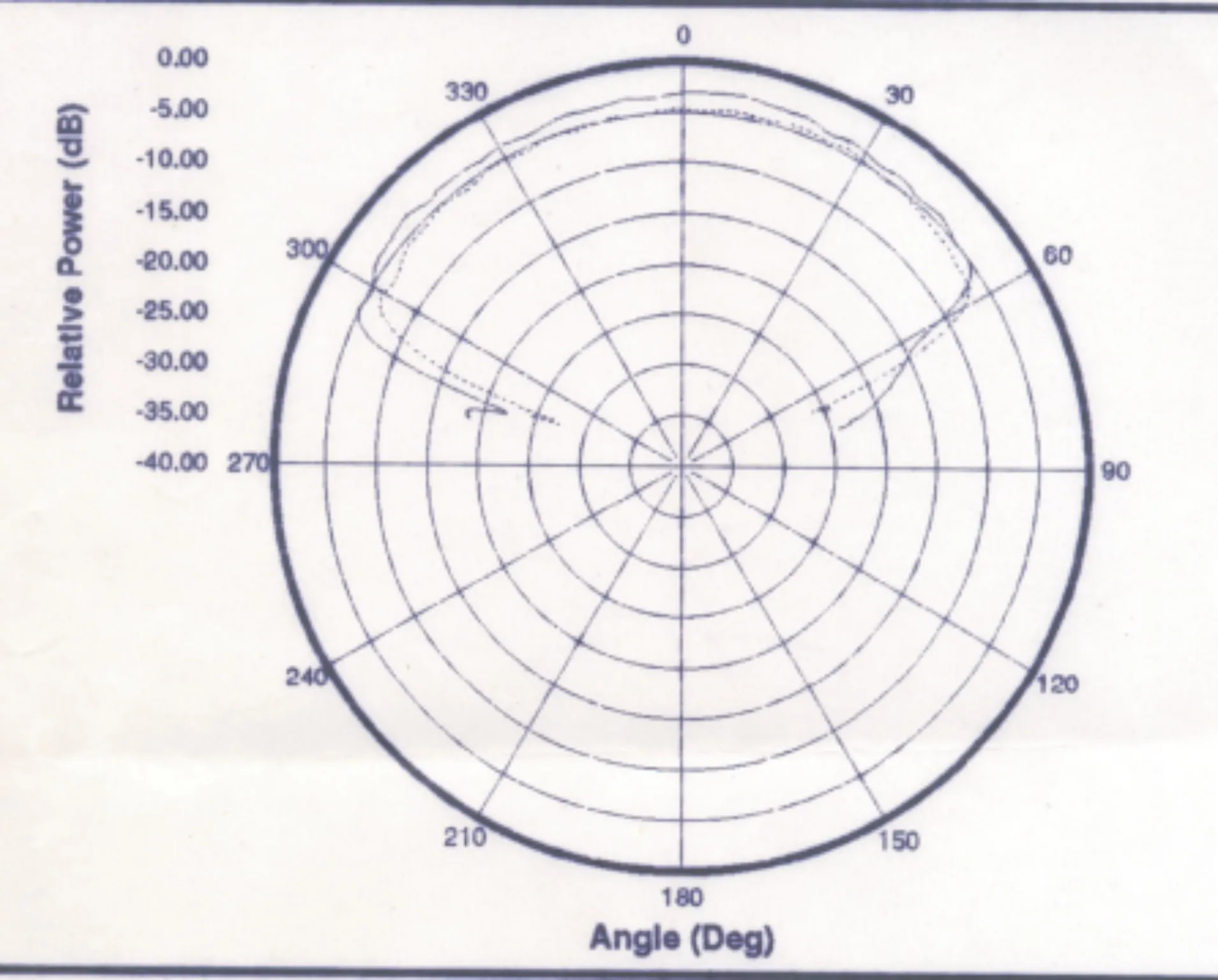

| 9010 | 5.3 | 2.0 | 10 | 90-100 | Rectilinear | 0.65 | M | |
| Luneberg Lens Radar Reflector 5.3 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |

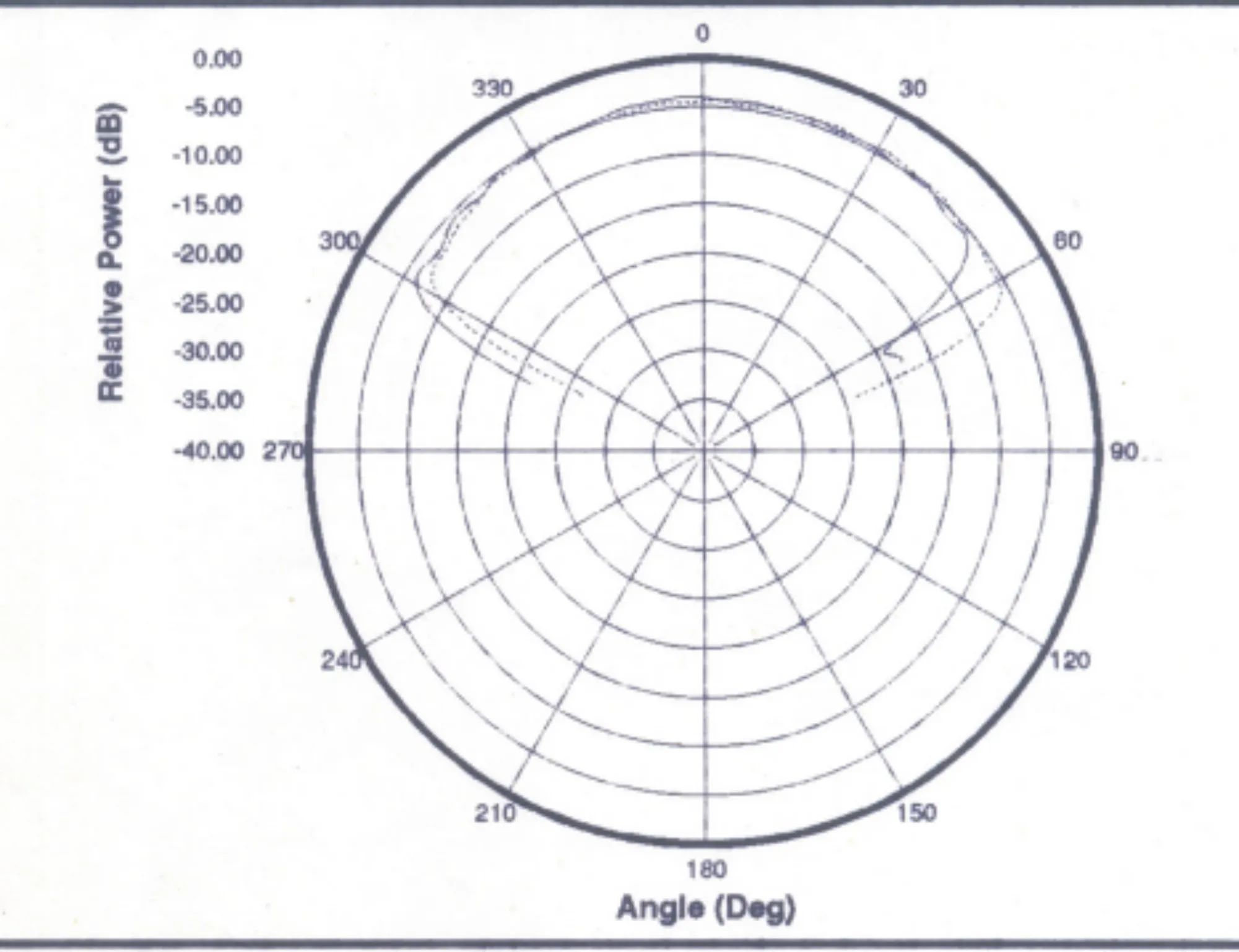

| 9100 | 5.3 | 3.5 | 10 | 90-100 | Rectilinear | 0.62 | M | |
| Luneberg Lens Radar Reflector 6 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |

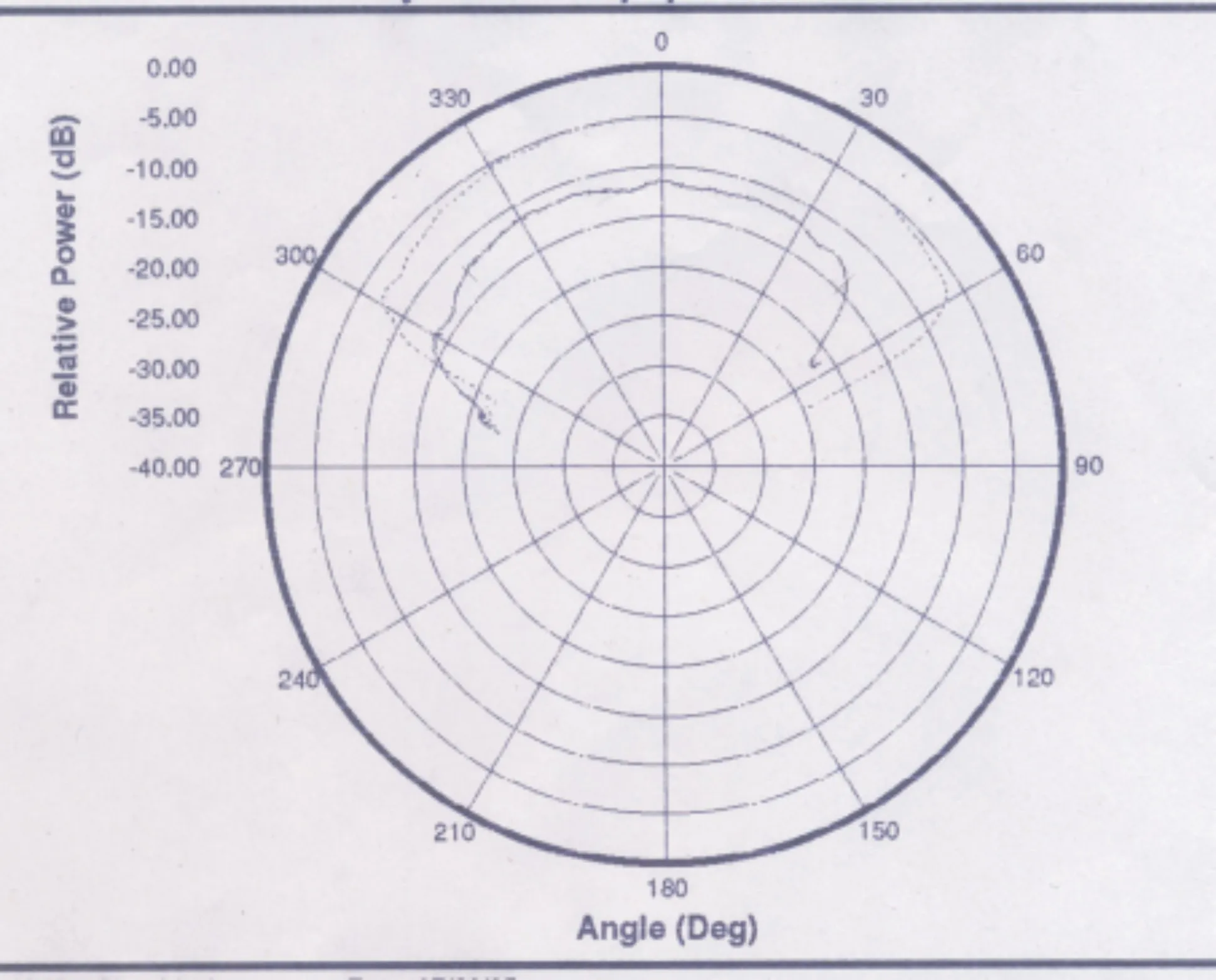

| 9019 | 6.0 | 3.0 | 10 | 110 | Rectilinear | 1.0 | M | |
| Luneberg Lens Radar Reflector 6.1 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |

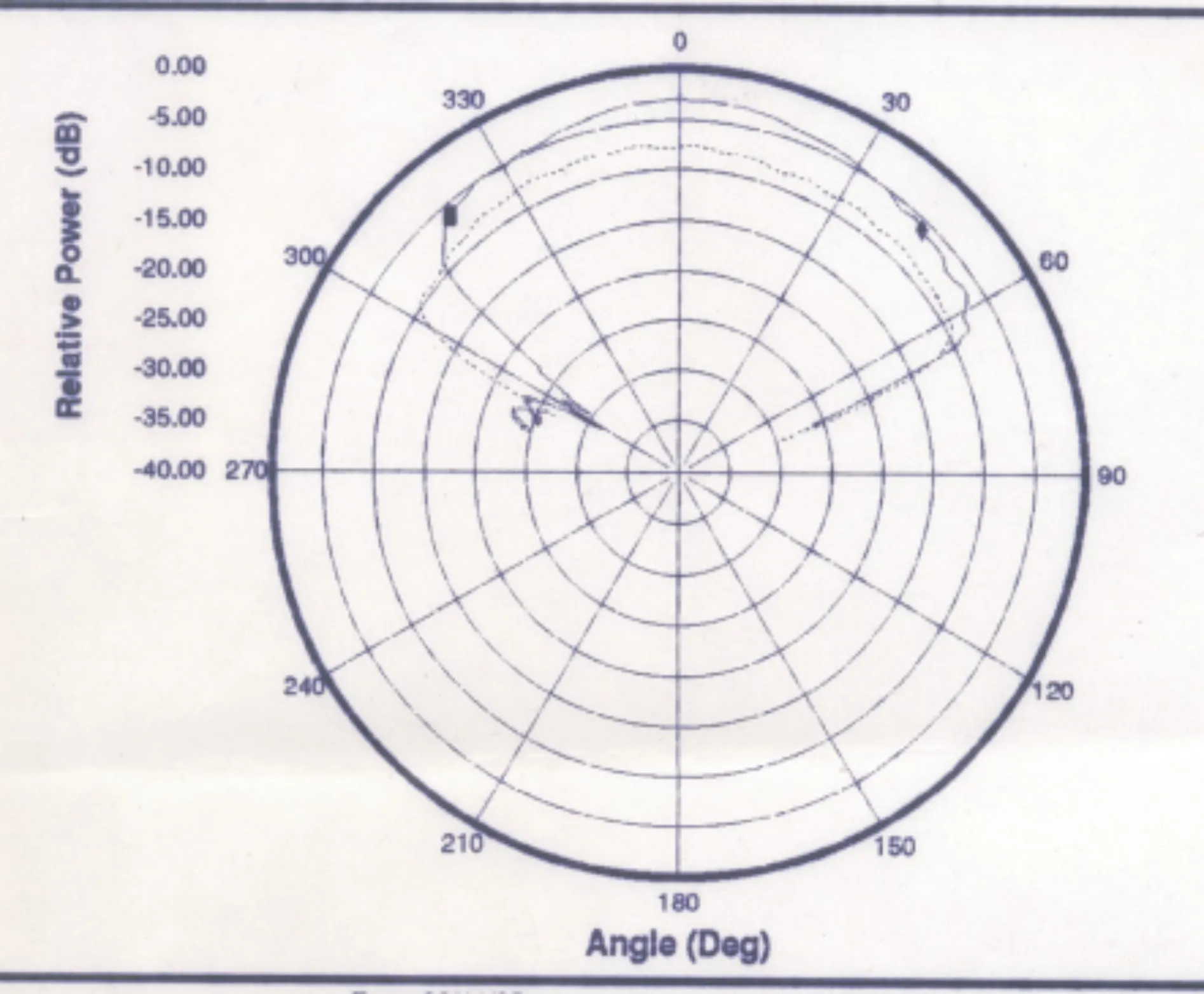

| 9091 | 6.1 | 4.0 | 10 | 90-110 | Rectilinear | 1.05 | M | |
| Luneberg Lens Radar Reflector 7.0 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |
| 9001 | 7.0 | 5.5 | 10 | 100 | Rectilinear | 1.5 | M | |
| Luneberg Lens Radar Reflector 8.5 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |
| 9919 | 8.5 | 15 | 10 | 100 | Rectilinear | 2.5 | M | |
| Luneberg Lens Radar Reflector 9.0 inches | ||||||||
 |
Part No | Diameter (inches) | RCS (sq meter) | Frequency (GHz) | View Angle | Polarization | Weight (KG) |
Type |
| 9901 | 9.0 | 10 | 10 | 100 | Rectilinear | 3.6 | M | |
3List of technical parameters of TF Lomber lens reflector (Table 1):
| Model | Diameter (mm) |
Weight (g) |
Band | Max RCS (²) |
Reflection Characteristics （Cone Angle） |
|---|---|---|---|---|---|
| TF-10-I | 103.6 | 200 | X | 0.75 | >120° |
| TF-12-I | 122 | 350 | X | 1.46 | >120° |
| TF-13-I | 132 | 436 | X | 1.8 | >120° |
| TF-14-I | 146 | 550 | X | 2.3 | >120° |
| TF-15-I | 156 | 680 | X | 3 | >120° |
| TF-16-I | 162 | 740 | X | 3.3 | >120° |
| TF-17-I | 178 | 972 | X | 5 | >120° |
| TF-190-I | 190.5 | 1260 | X | 6.5 | >120° |
| TF-19-I | 195 | 1300 | X | 7 | >120° |
| TF-20-I | 207 | 1600 | X | 9 | >120° |
| TF-22-I | 227 | 2100 | X | 13 | >120° |
| TF-25-I | 259 | 3100 | X | 20 | >120° |
| TF-30-I | 307 | 5200 | X | 40 | >120° |
TF-I Lomber lens reflector is allowed to be used in several octaves with a wavelength greater than 2 cm. Its radar reflection cross-sectional area is inversely proportional to the square of the wavelength, and the reflection angle is correspondingly unchanged.
The radar reflection cross-sectional area shown in Table 1 refers to the corresponding data when the frequency is 9375mhz. Refer to table 2 for other frequency band data.
Table 2 maximum RCS of TF-I Lomber lens reflector (²)
| 3G | 5G | 8G | 9G | 10G | 12.5G | 15G | 18G | |
|---|---|---|---|---|---|---|---|---|
| TF-10-I | 0.08 | 0.18 | 0.5 | 0.7 | 0.75 | 1.1 | 1.3 | 1.5 |
| TF-12-I | 0.16 | 0.35 | 0.97 | 1.3 | 1.46 | 2.14 | 2.53 | 2.92 |
| TF-13-I | 0.18 | 0.48 | 1.2 | 1.68 | 1.8 | 2.41 | 3.01 | 3.61 |
| TF-14-I | 0.23 | 0.61 | 1.53 | 2.1 | 2.29 | 3.06 | 3.82 | 4.59 |
| TF-15-I | 0.3 | 0.8 | 2 | 2.8 | 3 | 4 | 5 | 6 |
| TF-16-I | 0.35 | 0.93 | 2.33 | 3 | 3.3 | 4.66 | 5.5 | 7 |
| TF-17-I | 0.5 | 1.2 | 3.3 | 5 | 5 | 6.5 | 8.5 | 10 |
| TF-19-I | 0.8 | 1.8 | 5 | 6.4 | 7 | 9.1 | 11 | 14 |
| TF-20-I | 1 | 2.2 | 6 | 8 | 9 | 12 | 15 | 18 |
| TF-25-I | 2.3 | 5 | 13 | 17 | 20 | 24 | 27 | 27 |
| TF-30-I | 4.5 | 10 | 26 | 36 | 40 | 45 | 40 | 35 |
TF-2 omnidirectional model, with horizontal coverage of 360 degrees and vertical coverage of plus or minus 15 degrees. The RCS reflection area is 1 / 4-1 / 3 of TF-1 of the same size
Working conditions
Operating temperature: – 40 ℃ – + 55 ℃;
Relative humidity: no more than 98%.
