LIGHT BLADE Laser Weapon System Navy

LIGHT BLADE Series Laser Weapon System

It’ s designed for occasions where security and anti-terrorism are needed such as core departments (head of governor)??airports, oil depots??nuclear power plants, important military targets??VIP security??major events and so on. It can be rapidly disassembled, loaded for mechanical defense or fixed defense, and used to prevent invasion??attack??investigation??photographing, smuggling and aviation hazards of “low altitude, slow speed and small size” aircraft.

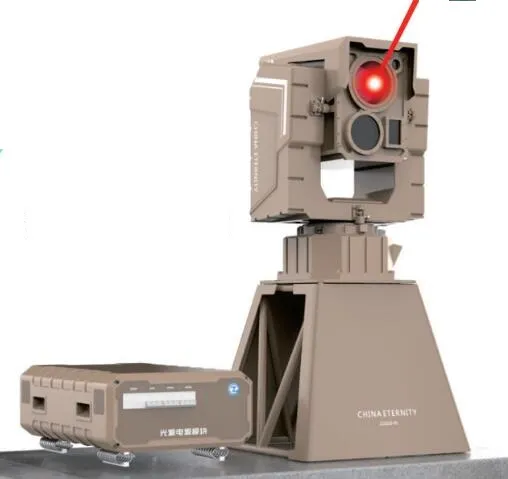

LIGHT BLADE I Laser Weapon System

Main Mission

It’ s designed for occasions where security and anti-terrorism are needed such as core departments (head of governor)，airports, oil depots，nuclear power plants, important military targets，VIP security，major events and so on. It can be rapidly disassembled, loaded for mechanical defense or fixed defense, and used to prevent invasion，attack，investigation，photographing, smuggling and aviation hazards of “low altitude, slow speed and small size” aircraft.

Standard Indexes

Laser Power：3.5KW
Maximum Attack Time：120s/Battery Power(according to need), Continuous/Urban Power
Work Airspace: Pitch Angle: -25°~65°;Azimuth Angle: O°~270°
Maximum Attack Distance:1.0km

Operational Capability

All-day work;
Detection distance: 2km (RCS=0.01m2);
Attack distance:1.0km.

“LIGHT BLADE”- II Laser Weapon System

Main Mission

Used to counterattack of “low altitude，slow speed and small size” aircraft, it can meets the short-range defense requirements of police, security and anti-terrorist, and has the capabilities of rapid mobility, self-defense system, detection and attack during moving.

Standard Indexes

Laser Power：3.5KW~12KW
Maximum Attack Time ：120s/Battery Power(according to need), Continuous/Urban Power
Work Airspace: Pitch Angle: -5°~65°;Azimuth Angle:360°
Maximum Attack Distance:1.0km~2.0km

Operational Capability

Can capture the target independently without radar;
Quick power on self test;
All-day work;
Supply different laser power according to different attack distances’ needs

Application Environment

Eligible to the city’s complex electromagnetic and illumination condition;
Eligible to extreme weather such as snow, sand, mould, thunder and lightning;
Eligible to 3000m altitude;
Working environment temperature: -20℃~50℃;
Storage environment temperature:-25 ℃~55℃;
Solar irradiance: 1120W/m2(4h at least);
Wind resistance level: ≥level 5; IP level: IP65.

Application scenarios of laser weapon systems


Head of Governor	Airport	Dam

Oil depot	Nuclear power plant	Important military objective
Combat operations centers、Weapon positions、 Ammunition depots、Army camps、Field training camps
	Border defense	VIP security
