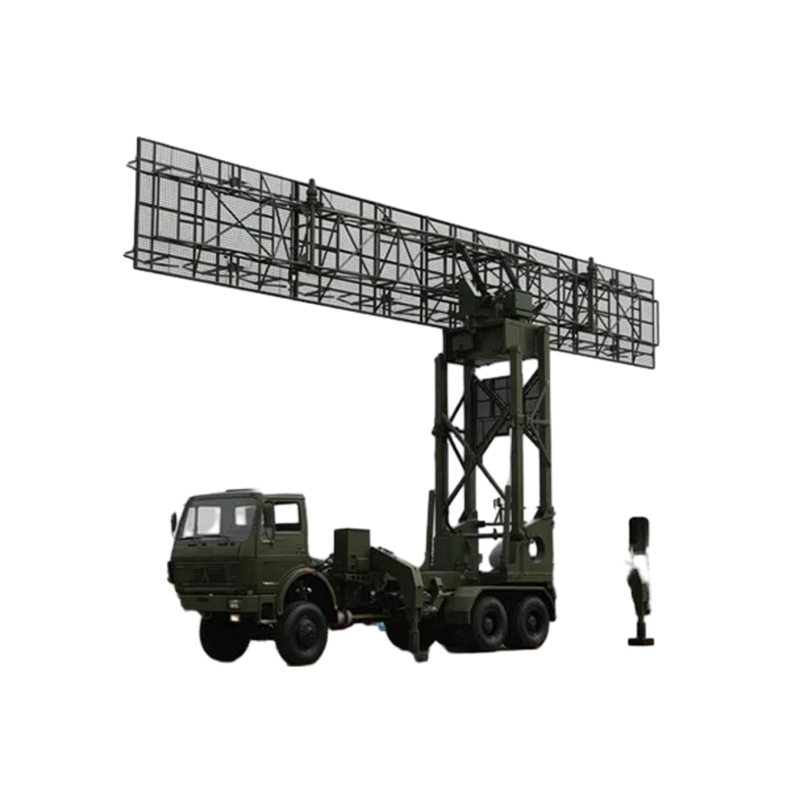

The JY-50 Passive Radar is a modern radar system designed for covert surveillance, target detection, and tracking without actively transmitting signals. By utilizing ambient radio frequency emissions such as commercial broadcast, communication signals, or other electromagnetic sources, the JY-50 provides a low-probability-of-intercept (LPI) capability, making it ideal for airspace monitoring, early warning, and tactical reconnaissance.
Representative Specifications (indicative)
| Parameter | Value / Range | Notes |
|---|---|---|
| Radar Type | Passive | Uses external RF sources for detection |
| Detection Range | ~100–250 km | Depends on target RCS, altitude, and available RF sources |
| Altitude Coverage | 50 m – 20,000 m | Low-to-medium altitude detection capability |
| Azimuth Coverage | 360° | Full circular coverage |
| Elevation Coverage | ~0–30° | Adjustable for target tracking |
| Target Types | Aircraft, UAVs, missiles | Low-RCS targets detectable |
| Mobility | Fixed or vehicle-mounted | Rapid relocation possible |
| Power Supply | AC 220/380 V or vehicle generator | Field flexible |
| Environmental Rating | -30°C to +55°C; weatherproof | Suitable for harsh deployment |
| Operators Required | 2–4 | For monitoring and operation |
Key Features
-
Passive Detection: Operates without active transmissions, reducing detectability and vulnerability.
-
Low Probability of Intercept (LPI): Enables covert monitoring of airspace and targets.
-
Multi-Target Tracking: Capable of simultaneously detecting and tracking multiple aerial and maritime targets.
-
Wide Frequency Utilization: Leverages commercial broadcast, communication signals, and other ambient RF sources.
-
High Sensitivity & Accuracy: Detects low-RCS and stealth targets at medium to long ranges.
-
Flexible Deployment: Can be installed as fixed stations, mobile units, or integrated into existing sensor networks.
-
Advanced Signal Processing: Includes clutter suppression, target classification, and trajectory estimation.
-
Network Integration: Compatible with command-and-control systems for centralized situational awareness.
