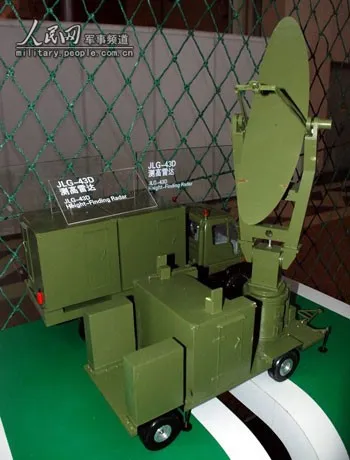

The JLG-43 radar is a nodding height finding radar, a two-dimensional (2D) radar which only provides azimuth and height data and is normally paired with other air search radars which provides the range to complete the picture. It is a fully mobile system which can be towed and is air transportable.
The radar have been in production by the Chengdu Jin Jiang Electronic System Engineering Company for a number of years and the latest version is the JLG-43C, JLG-43D.
JLG-43 Radar Specifications
S band
Pulsewidth: 3 µs
Peak Power: 2 MW
Range: 200 km
Height: 25,000 metres
Elevation coverage: 0–30°
Accuracy: 300 metres, 2° (azimuth)
