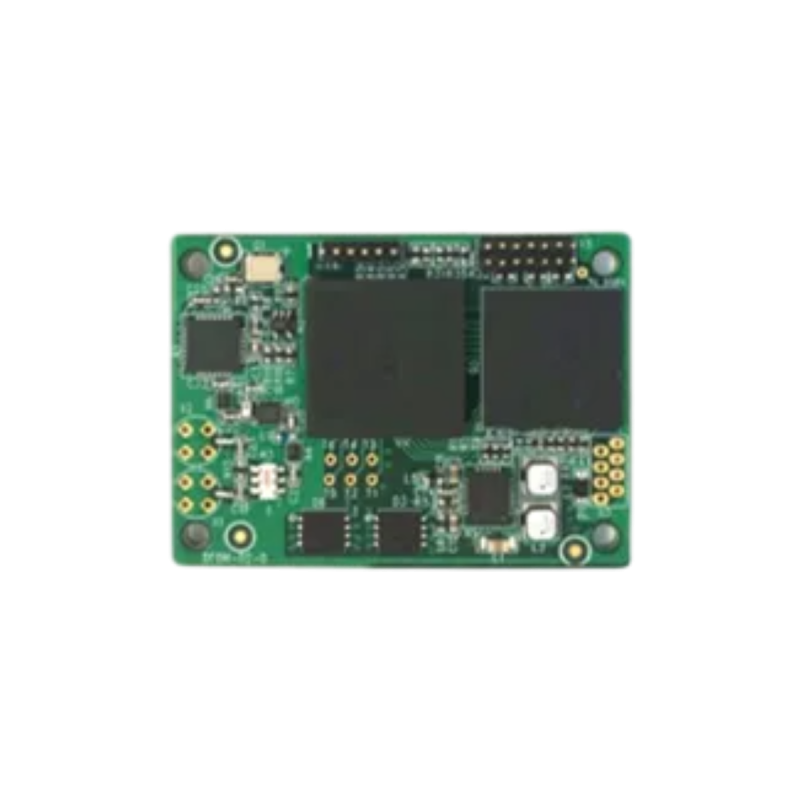

High-dynamic satellite navigation receivers enable positioning and timing functions for multi-system integrated navigation, meeting user requirements for high-speed dynamic applications such as airborne and missile-borne systems. Suitable for applications with high-dynamic rotating platforms.
Features
Signal reception design adjusted according to platform rotation speed;
Configurable for simultaneous reception and processing of BDS B1 and GPS L1 satellite navigation signals;
Features 16 independent channels;
Includes 1PPS signal output capability;
Supports signal acquisition, tracking, loss of lock, and rapid reacquisition under high-dynamic conditions;
Equipped with standard RS232/422 interfaces.
Application Fields
Suitable for positioning and navigation applications in aerospace, UAVs, missiles, and similar systems;
Ideal for applications involving high-dynamic rotary platforms.
| Signal reception capability | Single BD2 B3 frequency point (C code, P code) or BD2 B1 and GPS L1 frequency point | |
| positioning accuracy | PDOP≤3 | Positioning error≤l0m |
| Dynamic performance | Speed | ≥4000m/s |
| Acceleration | ≥50g | |
| Jerk | ≥30g/s | |
| With inertial assisted loop tracking capability | ||
| Environmental adaptability | -45℃～+80℃ | |
| Overall size | Antenna size | 109mm×84mm×22mm (can be customized) |
| Receiver size | 120mm×80mm×12mm (can be customized) | |
| Powered by | 5V DC | |
| Power consumption | ≤5W | |
