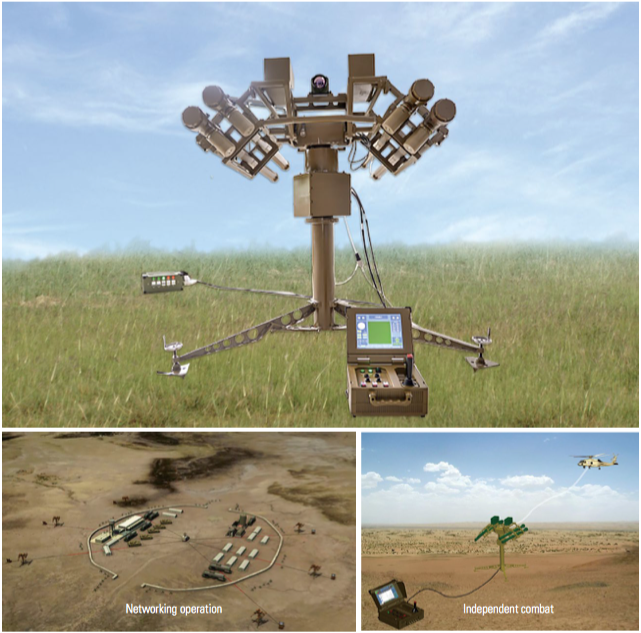

The FN-16J is an advanced remote-controlled, tripod-mounted variant of the FN-16 portable air defense system, engineered for persistent, precision engagement of low-altitude aerial threats without exposing operators to enemy fire. Designed for static site protection, forward operating bases (FOBs), critical infrastructure defense, and integrated air defense networks, the FN-16J delivers fire-and-forget lethality with the tactical advantage of remote operation.
By integrating an electro-optical/infrared (EO/IR) targeting suite, secure digital datalink, and automated turret control, the FN-16J enables a single operator to detect, track, and engage helicopters, UAVs, loitering munitions, and cruise missiles from up to 1,000 meters away. This system bridges the gap between man-portable MANPADS and vehicle-mounted SHORAD, offering unmatched flexibility for modern asymmetric and high-intensity combat environments.
Key Features
- Remote Operation: Fully controlled via ruggedized handheld terminal or command station (up to 1,000 m line-of-sight).
- 360° Traverse & Elevation Range: -10° to +90° elevation, continuous 360° azimuth rotation for full sky coverage.
- Integrated EO/IR Sight: High-resolution thermal camera (3–5 μm) and daylight CCD for day/night target acquisition.
- Fire-and-Forget Capability: Uses FN-16 missile with dual-band IIR seeker for autonomous terminal guidance.
- Quick Lock-On: Automatic target tracking and missile cueing in under 10 seconds.
- Low Acoustic & Visual Signature: Silent electric drive system; minimal launch flash detection.
- Network-Ready: Supports integration with radar warning receivers, C4I systems, and drone detection platforms.
- All-Weather Performance: Operates in rain, fog, dust, and temperatures from -40°C to +60°C.
- Rapid Re-Deployment: Lightweight tripod setup (< 3 min); compatible with standard military tripods.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Type | Remote-Controlled Tripod-Launched SAM System |
| Missile Compatibility | FN-16 missile (IIR-guided, fire-and-forget) |
| Number of Missiles | 1 (ready-to-fire); reloadable in field (< 90 sec) |
| Control Range | Up to 1,000 m (secure UHF datalink, LOS) |
| Control Unit | Ruggedized handheld terminal with touchscreen and joystick |
| Target Acquisition | Integrated EO/IR Turret (30x zoom thermal, 1080p daylight camera) |
| Tracking Mode | Manual, Auto-Track, and Predictive AI Algorithm |
| Turret Weight | 28 kg (with missile and EO/IR) |
| Tripod Weight | 12 kg |
| Total System Weight | 40 kg (fully loaded, transportable in two cases) |
| Effective Range | 600 m – 6,500 m |
| Effective Altitude | 15 m – 4,000 m |
| Traverse Speed | 60°/sec (max), step-and-stare mode available |
| Power Supply | 24V DC (rechargeable battery pack, 8 hr runtime) or external power |
| Environmental Rating | IP67 (turret), MIL-STD-810G compliant |
| Setup Time | < 3 minutes |
| Communication Interface | Encrypted RF datalink + optional fiber-optic backup |
| IFF Integration | Optional Mode 5 IFF reader (remote verification) |
| Lethality (Pk) | ≥ 0.80 (vs. UAV/helicopter, with ECCM active) |
Operational Applications
- Base Perimeter Defense: Protect airfields, command centers, logistics hubs from drone swarms and low-flying threats.
- Critical Infrastructure Protection: Secure power plants, communication nodes, and government facilities.
- Urban Combat: Deploy on rooftops or concealed positions with operator in protected location.
- Border & Coastal Surveillance: Pair with radar for automated alert and manual engagement.
- Force Protection: Deploy ahead of main units for early air threat neutralization.
Support & Integration
The FN-16J system is supported by comprehensive training programs, simulation software, and maintenance kits. It can be integrated with 3D air surveillance radars (e.g., X-band AESA) for fully automated threat detection and cueing, enabling a “detect-to-engage” timeline under 20 seconds.
