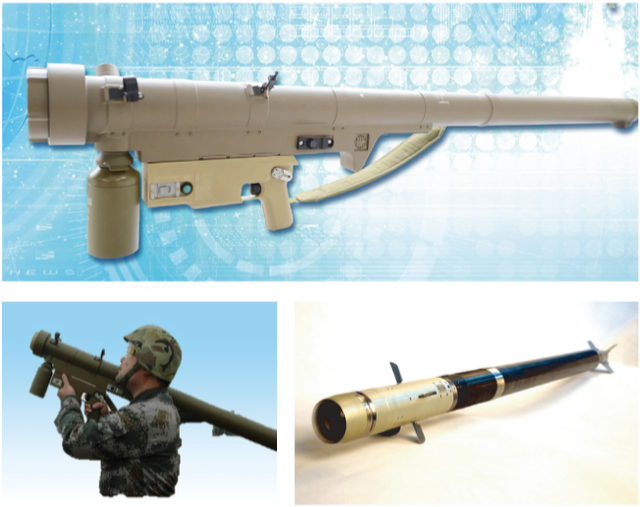

The FN-16 is a state-of-the-art man-portable air defense system (MANPADS) engineered to deliver rapid, precise, and reliable engagement of low-flying aerial threats in complex battlefield environments. Designed for modern armed forces, special operations units, and forward-deployed troops, the FN-16 combines advanced infrared imaging guidance, enhanced countermeasure resistance, and exceptional mobility to ensure air superiority at the tactical edge.
Leveraging a dual-band Imaging Infrared (IIR) seeker and intelligent target recognition algorithms, the FN-16 effectively neutralizes helicopters, unmanned aerial vehicles (UAVs), cruise missiles, and close-air support aircraft, even in high-clutter or electronic warfare-heavy scenarios. With a fire-and-forget capability and all-weather operability, the FN-16 sets a new benchmark for portable air defense systems.
🔧 Key Features
- Advanced IIR Seeker: Dual-color infrared imaging (3–5 μm & 8–10 μm bands) for superior target discrimination and anti-jamming performance.
- Fire-and-Forget Operation: Full autonomy after launch; no need for continuous guidance.
- High ECCM Capability: Resistant to flares, laser dazzlers, and RF jamming through AI-assisted threat classification.
- Quick Reaction Time: System ready to fire in under 20 seconds from carry position.
- All-Weather & Day/Night Operation: Integrated thermal sight and cryo-cooled seeker for 24/7 readiness.
- Lightweight & Ergonomic Design: Total system weight under 18 kg; easily operated by a two-soldier team.
- Network-Enabled: Optional datalink for C4I integration and battlefield situational awareness.
- Programmable Warhead: Multi-mode fuse (proximity, impact, and delayed) for optimized lethality.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| System Designation | FN-16 MANPADS |
| Missile Length | 1.72 m |
| Missile Diameter | 72 mm |
| Missile Weight | 11.8 kg (in launch tube) |
| Launcher Unit (Gripstock) | 1.7 kg (includes BCU and IFF interface) |
| Total System Weight | ≤ 18.0 kg (ready to fire) |
| Effective Range | 600 m – 6,500 m |
| Effective Altitude | 15 m – 4,000 m |
| Guidance System | Imaging Infrared (IIR) + Digital Signal Processing + AI-Based ECCM |
| Seeker Type | Cooled Dual-Band IIR (MWIR + LWIR) |
| Target Detection Range | Up to 10 km (passive IR detection) |
| Warhead | High-Explosive Fragmentation with Pre-Formed Penetrators |
| Warhead Weight | 2.5 kg |
| Fuse Modes | Proximity, Impact, and Delayed (Selectable) |
| Propulsion | Solid-Propellant, Dual-Pulse Rocket Motor |
| Missile Speed | Mach 2.8 |
| Target Types | UAVs, Helicopters, Fighters, Cruise Missiles |
| Operating Temperature | -45°C to +65°C |
| Storage Life | 10 years (sealed canister) |
| Reliability (Pk) | ≥ 0.85 (vs. maneuvering target, no countermeasures) |
| IFF System | Integrated Mode 4 / Mode 5 (optional) |
| Power Source | Replaceable Battery Coolant Unit (BCU) |
🌍 Operational Advantages
- Rapid Deployment: Shoulder-fired or tripod-mounted; ideal for dismounted infantry and mobile units.
- Low Signature: Passive acquisition and launch reduces detectability.
- Modular Upgradability: Seeker, warhead, and software can be field-upgraded.
- Training Support: Full suite of simulators, live-fire trainers, and instructor programs available.
- Export Compliant: Meets international arms control guidelines (subject to national approval).
✈️ Integration & Future-Readiness
The FN-16 is compatible with vehicle-mounted pods (e.g., FN-16V variant) and can be integrated into short-range air defense (SHORAD) networks. Its open-architecture design allows seamless integration with command systems, radar cueing, and drone detection platforms, making it a cornerstone of layered air defense strategies.
