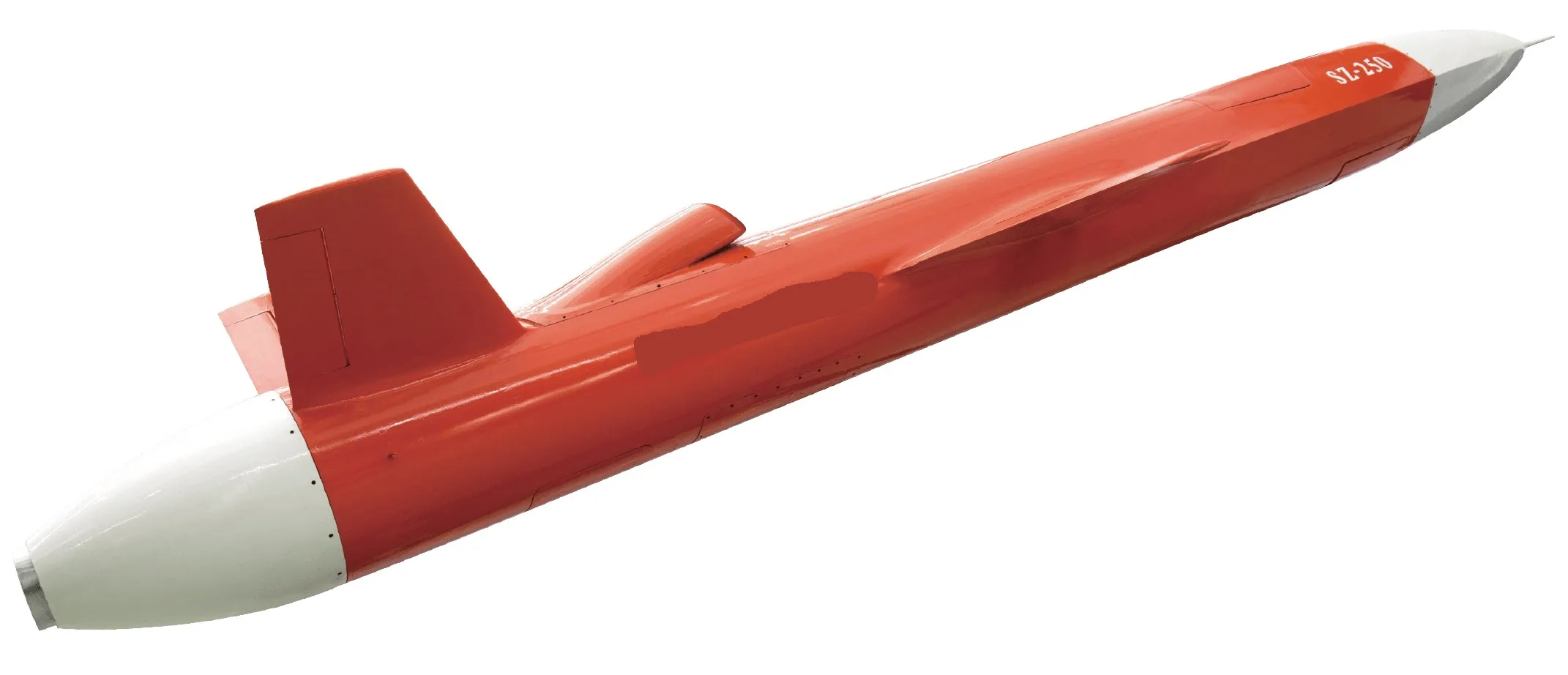

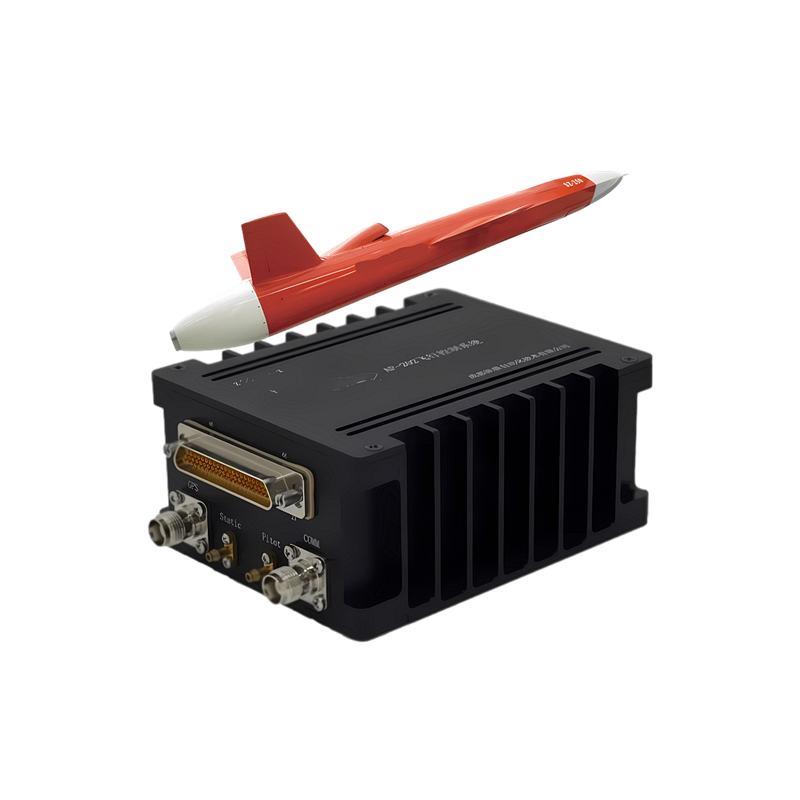

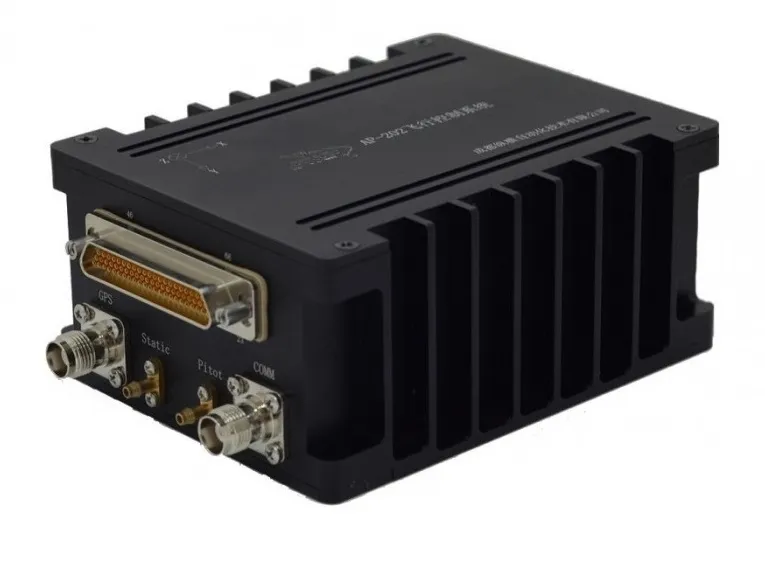

Flight Control for Target Drones
The target aircraft flight control system can be used to ensure the stability and maneuverability of the target aircraft, improve the ability to complete the mission and flight quality, enhance the safety of the flight and reduce the burden of the pilot.
Target drone flight control system parameters
The military grade |
||||||
| Integrated version of flight control | Split version flight control | |||||
| 801-80 | 801-180 | 801-280 | 821-80 | 821-180 | 821-280 | |
| point positioning | • | • | • | • | • | • |
| Flight speed | ≤80m/s | ≤180 m/s | ≤280 m/s | ≤80 m/s | ≤180 m/s | ≤280 m/s |
| Flight aultitude | ≤ 10000m | |||||
| Accuracy of flight position | ±2m | |||||
| Accuracy of flight position | 士 0.2 m/s | |||||
| Flight elevation accuracy | ±5m | |||||
| Flight altitude accurancy | ±1.5° | |||||
| Flying ship directional accuracy | 士 2.5° | |||||
| analog input | 3 | |||||
| Digital input | 2 | 4 | ||||
| Digital output | 6 | 6 | ||||
| PWM outoput | 14 | |||||
| SBUS input and output | Support | |||||
| RS232 Serial Interface | 4 | 6 | ||||
| Other communication | Expandable 1way CAN | |||||
| Number of destinations | 1024 (Expandable) | |||||
| POSdata storage | 8192 (Expandable〉 | |||||
| control mode | Telecontrol mode、Stabilization mode、autonomous mode | |||||
| reliability standard | 6JB1S0A, GJB151B | |||||
| Digital link distance | 60km | |||||
| weight | 190g | i6〇g | ||||
| voltage | 8-30V | 8-48V | ||||
| Power cosumption | 3W | 3W | ||||
| operating temperature | -40 〜+70℃ | |||||
| storage temperature | .-55 〜+85*C | |||||
