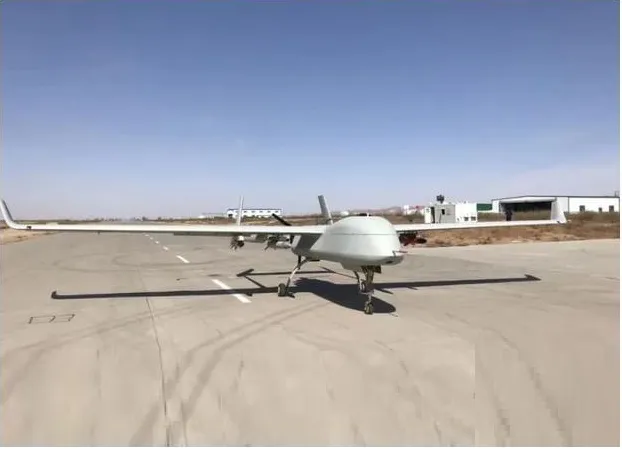

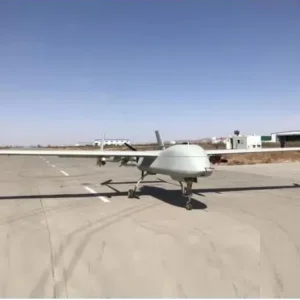

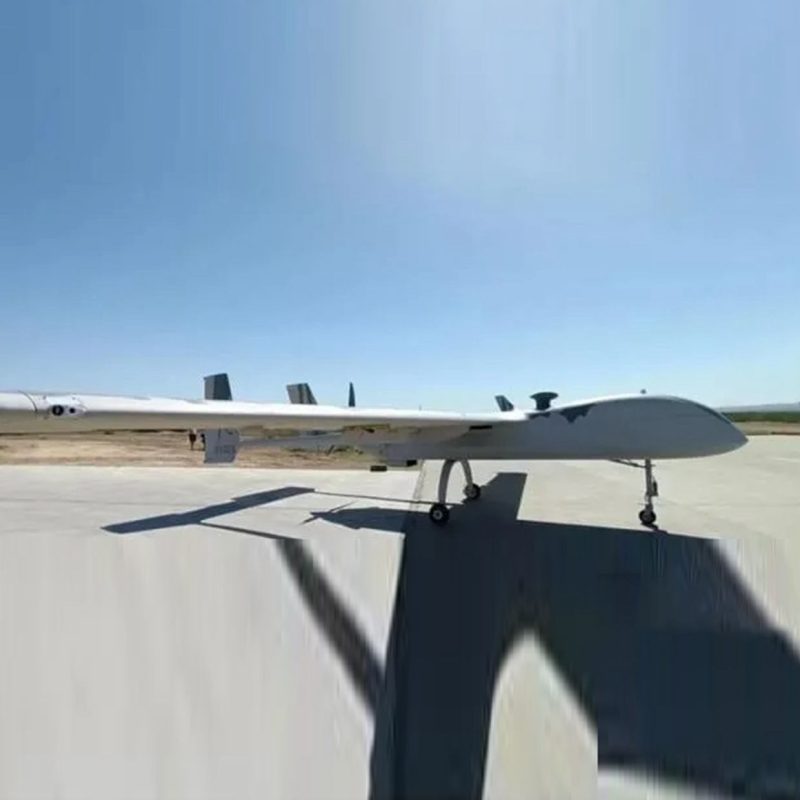

The FH-95 is a high-performance, medium-range, multi-mission unmanned aerial vehicle (UAV) system designed to deliver integrated reconnaissance, precision strike, electronic warfare (EW), and battlefield communications support for modern joint forces. With a maximum endurance of 20 hours, a range of 1,500 km, and a payload capacity exceeding 370 kg, the FH-95 serves as a versatile aerial node capable of operating deep behind enemy lines in contested environments.

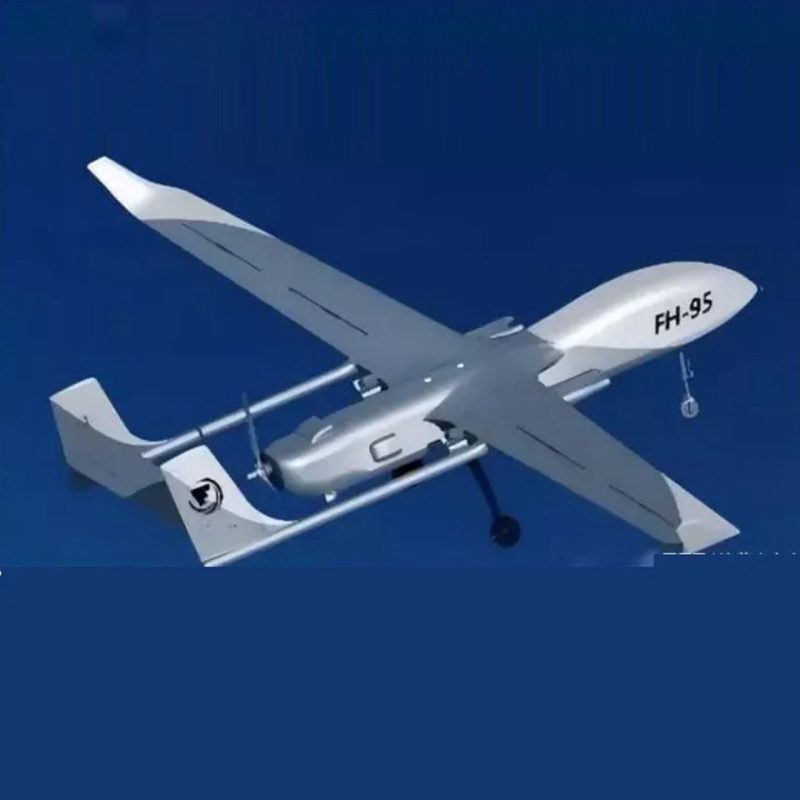

Featuring a robust twin-boom, pusher-propeller design with a V-tail configuration, the FH-95 combines long loiter time, all-weather reliability, and modular mission flexibility. It supports both intelligence, surveillance, and reconnaissance (ISR) missions and armed strike operations, making it ideal for counter-insurgency (COIN), border security, maritime patrol, and expeditionary warfare.
Equipped with advanced datalinks, AI-assisted target recognition, and network-centric warfare capabilities, the FH-95 seamlessly integrates into existing C4I architectures, acting as a force multiplier across land, sea, and air domains.
Key Features
- Multi-Role Capability: Performs ISR, precision strike, electronic intelligence (ELINT), communications relay, and maritime patrol.
- Heavy Payload Capacity: Up to 370 kg external stores on 6 hardpoints.
- Armed Configuration: Can carry a mix of:
- Air-to-surface missiles (e.g., AR-1, YJ-9E)
- Guided bombs (e.g., FT series, LS series)
- Unguided rockets
- Precision glide munitions
- Advanced ISR Payloads:
- EO/IR gimbal (HD daylight + cooled thermal imaging)
- Synthetic Aperture Radar (SAR)/Ground Moving Target Indicator (GMTI)
- Laser designator/rangefinder
- SIGINT/COMINT suite (RF detection & geolocation)
- AIS receiver (maritime domain awareness)
- Long Endurance & Range: Up to 20 hours flight time, 1,500 km operational radius.
- All-Weather Operation: Capable of flying in rain, snow, and moderate turbulence (up to Beaufort 6).
- Secure Datalink: Dual-mode transmission:
- Line-of-Sight (LOS): AES-256 encrypted COFDM up to 250 km
- Beyond Line of Sight (BLOS): SATCOM (Ku/Ka-band or Iridium) for global command and control
- Autonomous Flight: Fully automatic takeoff, mission execution, weapon release, and recovery.
- Launch & Recovery: Operates from unprepared runways (grass, dirt strips ≥ 300m); optionally equipped with arresting hook for short-field landing.
- AI-Enhanced Targeting: Onboard AI processes imagery for real-time target detection, classification, and tracking.
- Network-Centric Warfare Ready: Shares targeting data with artillery, drones, and command centers via tactical data links.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Designation | FH-95 Medium Range Multi-functional UAV System |
| UAV Type | Fixed-wing, twin-boom, pusher propeller |
| Wingspan | 15.0 m |
| Length | 8.3 m |
| Height | 2.7 m |
| MTOW (Max Takeoff Weight) | 1,200 kg |
| Empty Weight | 830 kg |
| Payload Capacity | Up to 370 kg (internal + external) |
| Fuel Capacity | 220 L |
| Propulsion | Heavy-fuel (diesel/Jet A-1) piston engine, ~120 hp |
| Cruise Speed | 150–180 km/h |
| Max Speed | 260 km/h |
| Stall Speed | 85 km/h |
| Service Ceiling | 7,500 m (24,600 ft) |
| Operating Altitude (AGL) | 100 – 6,500 m |
| Wind Resistance | Up to 75 km/h (Beaufort 6) |
| Flight Endurance | 15–20 hours (depending on payload) |
| Operational Radius | Up to 1,500 km |
| Control Range (LOS) | Up to 250 km |
| BLOS Option | Ku/Ka-band SATCOM or Iridium BLOS link |
| Communication Link | Dual-band COFDM + SATCOM, frequency-agile |
| Encryption | AES-256 |
| Navigation System | GPS/BeiDou + GLONASS + Galileo + INS (high-grade) |
| Autonomous Functions | Auto takeoff, waypoint nav, orbit, weapon release, RTL, auto-land |
| Hardpoints | 6 (2 wingtip, 4 underwing) |
| Weapon Compatibility | AR-1, YJ-9E, FT-7, LS-6, TY-90, APKWS-type, etc. |
| Primary Payloads | EO/IR, SAR/GMTI, SIGINT, Laser Designator, AIS |
| Ground Control Station (GCS) | Dual-operator rugged console with 3D tactical map, weapon control panel |
| Crew | 2 (Pilot + Mission Commander) |
| Power Supply | Onboard 28V DC or external 220V AC |
| Operating Temperature | -40°C to +60°C |
| Runway Requirement | 300–500 m (unpaved) |
| Transportability | Disassembled transport in 20ft container or IL-76/C-130 aircraft |
Operational Roles
- Tactical Strike: Precision engagement of armored vehicles, bunkers, and static targets.
- Persistent ISR: Long-duration surveillance over battlefields, borders, or urban zones.
- Electronic Warfare: Detection, jamming, and geolocation of enemy radar and communication signals.
- Maritime Patrol: Ship tracking, anti-piracy, and coastal monitoring with AIS integration.
- Battlefield Communications Relay: Extends UHF/VHF/LTE network coverage for dismounted troops.
- Target Designation: Laser designation for laser-guided munitions fired by other platforms.
- Swarm Coordination: Acts as a command drone for smaller UAV swarms (future upgrade).
Support & Export Configuration
The FH-95 is offered with a comprehensive support package:
- Full training program (flight, weapons, maintenance, tactics)
- Spare parts kits, engine modules, and weapon adapters
- Mission planning & real-time data analysis software
- Remote diagnostics and OTA software updates
- Optional SATCOM, SAR, EW, or maritime payloads
- Integration support with national C4I systems
- Civilian variant available for disaster monitoring and resource survey
Configurations available:
- ISR-Only
- Armed Strike
- Electronic Warfare
- Multi-Role Combat
Complies with international export regulations; adaptable to customer-specific requirements.
