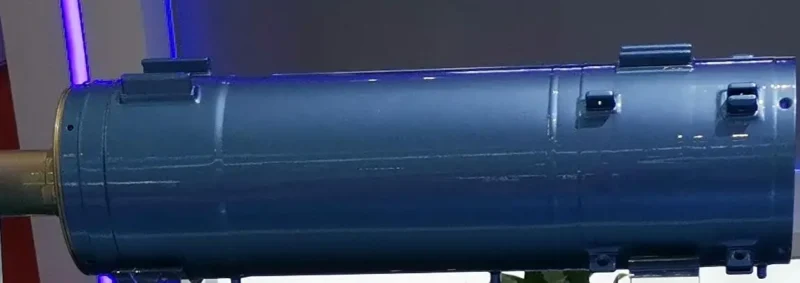

FG-86 solid rocket motor is a conventional solid rocket motor developed by Beijing Institute of Power Machinery. It consists of front head, combustion chamber, nozzle and igniter. The engine adopts head ignition technology. After ignition, the charge continues to burn and generate rated thrust, and then the aircraft falls off freely under the action of aerodynamic force and gravity when it reaches the specified speed. It can be used as the first stage take-off power device of UAV and missile
Main Performance Index of FG-86 solid rocket motor
Code Name：FG-86
Diameter：220mm
Length：1421mm
Weight：≤80kg
Total Impulse：≥120KN ·s
Thrust：25KN56KN
Working Time：≤4s
Operating Temperature：-40℃～+55℃
Operational Height：0km～10km
Representative Specifications (indicative)
| Parameter | Value / Range | Notes |
|---|---|---|
| Motor Type | Solid Rocket Motor | Single-stage solid propellant |
| Thrust | ~8,600 N | Peak thrust, indicative |
| Burn Time | ~25–30 s | Adjustable depending on configuration |
| Propellant Mass | ~12–15 kg | High-energy solid propellant |
| Total Weight | ~20–25 kg | Including casing and nozzle |
| Length | ~1.2–1.5 m | Approximate |
| Diameter | ~0.12–0.15 m | Compact for tactical integration |
| Operational Temperature | -40°C to +55°C | Suitable for diverse environments |
| Storage Life | ~5–7 years | Depending on propellant and handling conditions |
Key Features
-
High Thrust Output: Provides strong, sustained propulsion for missiles and tactical rockets.
-
Solid-Fuel Propellant: Ensures simplicity, reliability, and minimal maintenance.
-
Compact & Lightweight: Facilitates integration into multiple missile or rocket platforms.
-
Reliable Performance: Consistent thrust and burn rate under various environmental conditions.
-
Low Maintenance: No complex fuel handling systems; simple storage and operational readiness.
-
Robust Construction: Designed to withstand handling, launch stresses, and transportation.
-
Flexible Integration: Compatible with different missile calibers and tactical platforms.
-
Optional Configurations: Can be tailored for specific burn times, thrust profiles, or tactical requirements.
