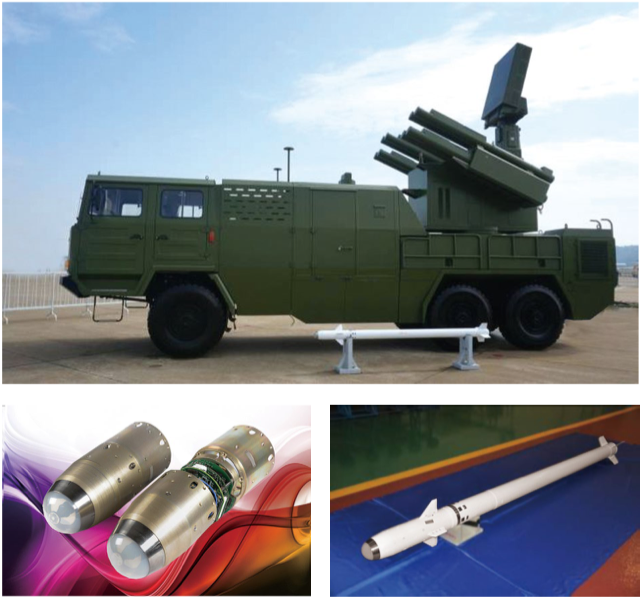

The FB-10 Missile is a highly effective, self-propelled medium-range air defense system designed to deliver rapid, all-weather protection for maneuver forces, critical infrastructure, and forward operating bases. Based on a mature platform with combat-proven performance, the FB-10 integrates a powerful surveillance radar, electro-optical targeting, and a vertical launch missile system into a single mobile unit — providing frontline units with autonomous, shoot-and-scoot air defense capability.
Mounted on a rugged 6×6 high-mobility chassis, the FB-10 is engineered for rapid deployment, high survivability, and seamless integration into layered air defense networks. It excels in countering fighter aircraft, attack helicopters, cruise missiles, UAVs, and precision-guided munitions in both conventional and asymmetric warfare environments.
Key Features
- Vertical Launch System (VLS): 6-cell canisterized VLS enabling 360° engagement and rapid firing sequence.
- Integrated Surveillance & Fire Control: Pulse-Doppler search radar + dual-band EO/IR tracker for autonomous operation.
- Fire-and-Forget Missiles: Uses active radar homing (ARH) or imaging infrared (IIR) guided missiles with high lethality.
- High Mobility: 6×6 tactical vehicle with excellent off-road performance and strategic air transportability (C-130 compatible).
- Fast Reaction Time: From target alert to missile launch in under 10 seconds.
- Network-Ready: Supports digital datalinks for integration with command centers and early warning systems.
- Redundant Targeting Modes: Radar-guided, EO/IR-only, or manual backup for operation in GPS-denied or jamming environments.
- Operator Protection: Armored cabin with NBC protection and run-flat tires.
- Low Lifecycle Cost: Designed for ease of maintenance, training, and long-term sustainment.
Technical Specifications
| Parameter | Specification |
|---|---|
| System Designation | FB-10 Mobile Air Defense System |
| Platform | 6×6 High-Mobility Tactical Vehicle (NBC-protected) |
| Vehicle Dimensions | ~8.5 m (L) × 2.8 m (W) × 3.3 m (H) |
| Combat Weight | ~14 tons |
| Crew | 3 (Commander, Fire Control Officer, Driver) |
| Engine | Diesel, ≥ 350 hp |
| Max Speed | ≥ 100 km/h (road), ≥ 40 km/h (off-road) |
| Range | ≥ 750 km |
| Fording Depth | 1.2 m |
| Search Radar | Pulse-Doppler, S-band, rotating antenna |
| Radar Detection Range | Up to 45 km (vs. fighter), 20 km (vs. UAV) |
| Tracking System | Dual-Band EO/IR (3–5 μm & 8–10 μm), HD daylight camera |
| Target Capacity | Track up to 12 targets, engage 1 at a time |
| Missile Type | Active Radar Homing (ARH) or IIR variant |
| Missile Length | 3.6 m |
| Missile Diameter | 180 mm |
| Missile Weight | 260 kg |
| Propulsion | Solid-fuel rocket motor |
| Missile Speed | Mach 3.0 |
| Effective Range | 2 km – 20 km |
| Effective Altitude | 50 m – 15,000 m |
| Warhead | High-Explosive Fragmentation with laser/proximity fuse |
| Warhead Weight | 30 kg |
| Launcher System | 6-cell Vertical Launch System (VLS), cold launch |
| Reload Capability | Optional reload vehicle or manual reload (field) |
| Reaction Time | < 10 seconds (from alert to launch) |
| Operating Temperature | -40°C to +55°C |
| Protection Level | STANAG 4569 Level 2 (ballistic), Level 2a (mine) |
| Communication | Secure UHF/VHF radio, Ethernet, MIDS-compatible |
| IFF System | Mode 4 / Mode 5 (optional) |
| Power Supply | Onboard 6 kVA generator + battery backup |
Operational Roles
- Force Protection: Shields mechanized units, logistics convoys, and command posts on the move.
- Point Defense: Secures airfields, power stations, and government facilities from low-altitude threats.
- Urban Air Defense: Effective in complex terrain with rapid target acquisition and low-altitude coverage.
- Drone & UAV Defense: High-resolution EO/IR enables detection and engagement of small, low-RCS drones.
- Integrated Air Defense: Operates as a standalone unit or integrates into larger IADS via digital command links.
Support & Export Configuration
The FB-10 Vertical Launch Missile is available for international export with comprehensive support:
- Full training program (operator, maintenance, tactical employment)
- Technical manuals, spare parts kits, and diagnostic tools
- Optional integration with third-party radars or C2 systems
- Local maintenance and repair training
Designed for ease of adoption, the FB-10 offers a balanced mix of performance, reliability, and affordability for air forces and armies worldwide.
