Product description

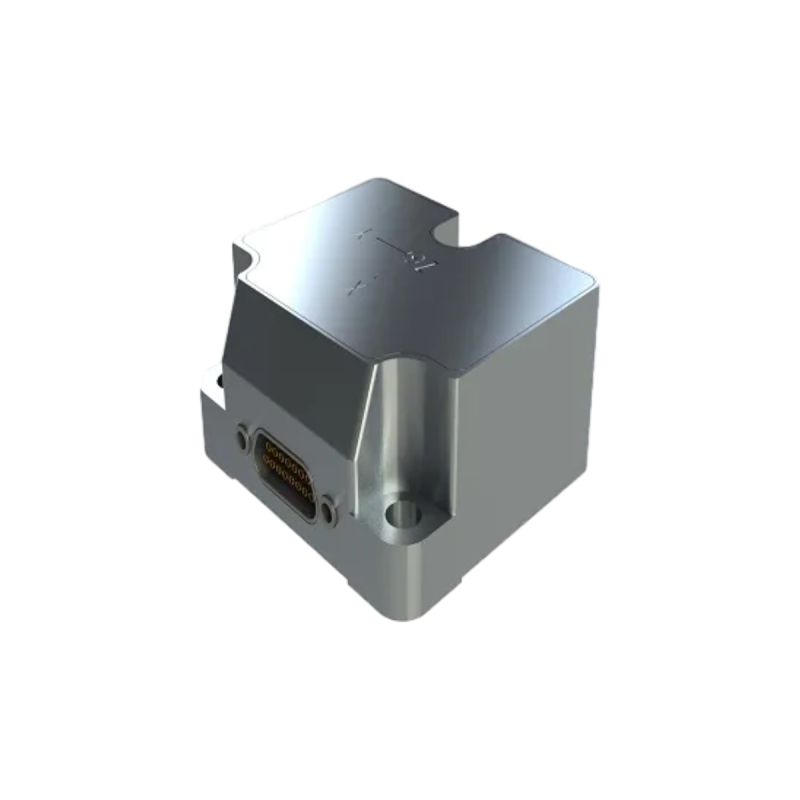

DH-M10 MEMS Gyro assembly integrates high-precision MEMS Gyro (two axes / three axes can be customized), MCU data acquisition and processing system, 422 communication conversion circuit and structural part. Its working principle is that the angular rate and temperature data of MEMS Gyro are transmitted to MCU data acquisition system through SPI communication interface, then the temperature is compensated through algorithm, and then the data is output through UART interface.
Key Specifications: DH-M10A
Dimensions: 44.8 × 38.6 × 21.5 mm
Weight: <50g
Measurement Range (Customizable): 200~1000°/s
Bandwidth: 50~400Hz
Zero Drift Stability: <1°/h
Zero Drift Repeatability: <2°/h
Operating Voltage: ±0.5V
Operating Current: <0.3A
