Anti Low Altitude Target Electro-Optical System
The typical suppression system against low-altitude UAVs detects, provides alarms, precisely tracks, electronically jams and attacks (using laser) any UAVs, model airplanes, Kongming lanterns and kites. The system consists of the command & control, search, track & pointing, interference, destroying, communication, power supply & distribution and vehicle. It is used to protect crucial places such as the office for the party committee/ government, airport, and the places for important meeting and massive gathering.
Typical Targets
Protection Range
Main Sub-System
Main Combat Technical lndexes
1. Alert means: radar and infrared ray
2. Track means: infrared, visible light
3. Electronic interference effect: expel, force landing, return
4. Laser interference effect: suppression, blind
5. Laser damage effect: ablation, crash
6. Protection area: radar radius 5km, photoelectric radius 1.5km (typical targets)
7. Laser damage distance:≮ 1km（typical targets）
8. Electronic interference distance： ≮ 2.5km（typical targets）
9. Comprehensive countermeasure success rate: ≮ 95%（1min）
10. System power guarantee: powered by the mains or power plant 11. System security: the electromagnetic radiation does not impact the civilian mobile communication and navigation, and does not result in harm to the persons in vehicle during operation of the searching radar and communication equipment. The distance measure laser is safe to the eyes.
The Effect Diagram of System Composition and Main Equipment

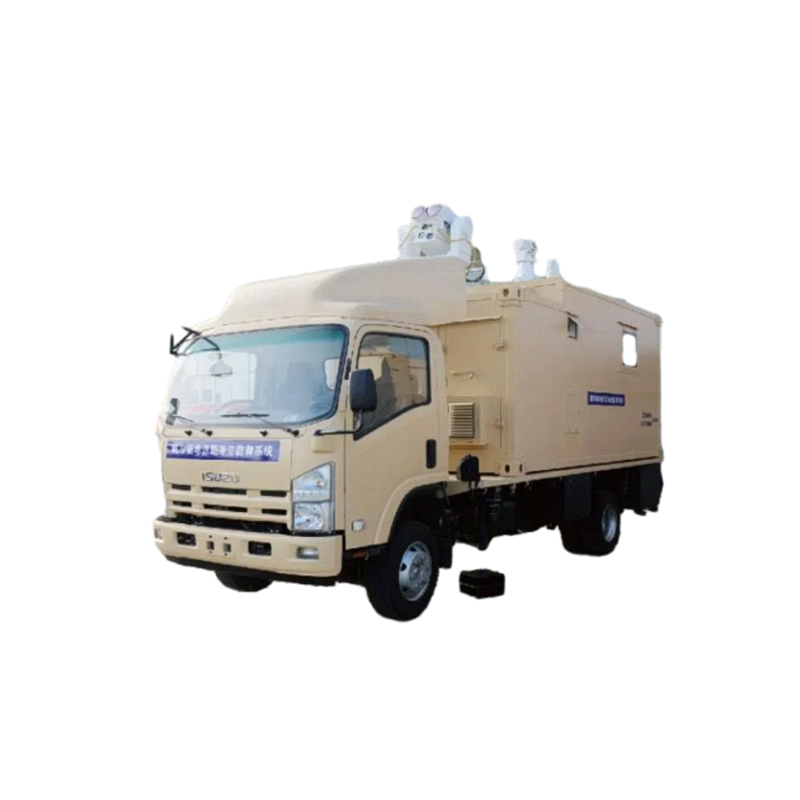

The Diagram of Vehicle
Representative Specifications (indicative)
Parameter |
Value / Range |
Notes |
|---|---|---|
| System Name | GRL-300 Anti-UAV Laser Weapon System | Directed-energy UAV defense |
| Laser Power | 3 kW | Solid-state / fiber laser |
| Target Types | UAVs, small drones | Low-altitude aerial threats |
| Effective Range | ~1–3 km | Depending on target size, environment, and conditions |
| Engagement Time | Instantaneous | Near-instantaneous neutralization upon target acquisition |
| Power Supply | 220V AC / vehicle power | Supports mobile or fixed deployment |
| Operation Mode | Remote or automated | Human-in-the-loop or autonomous targeting |
| Mobility | Vehicle-mounted or fixed | Modular deployment options |
| Sensors | Optical, IR, tracking | Real-time detection and targeting |
Key Features
-
High-Energy Laser: 3 kW solid-state/fiber laser for rapid UAV neutralization.
-
Low Cost: Efficient and affordable solution compared to traditional kinetic air defense systems.
-
Silent & Low-Profile Operation: Minimal acoustic and visual signature, suitable for covert operations.
-
Rapid Target Acquisition: Integrated optical and IR sensors allow near-instantaneous detection and engagement.
-
All-Weather Operation: Effective in rain, fog, dust, and extreme environmental conditions.
-
Flexible Deployment: Compatible with vehicle-mounted, fixed, or mobile defense platforms.
-
Precision Engagement: Focused laser beam minimizes collateral damage while neutralizing threats.
-
Remote or Automated Operation: Supports human-in-the-loop or fully autonomous targeting modes.
