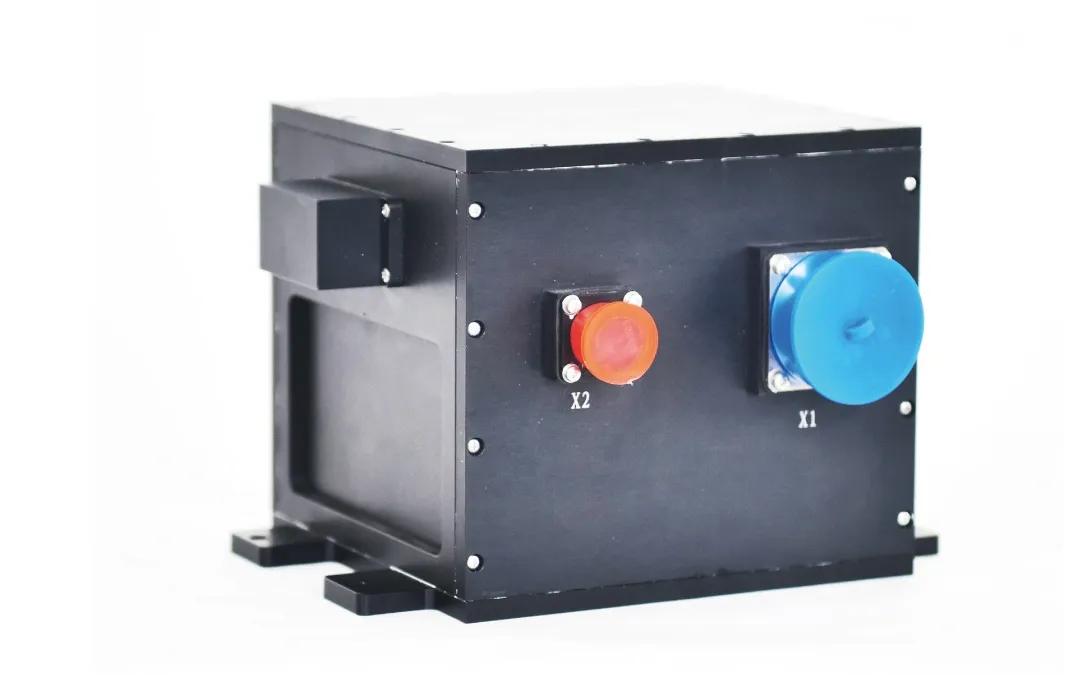

High specific power Li-ion battery
Features
High specific power, high rate discharge. Small volume, light weight.
Integrated battery management system (BMS).
Typical parameters
Rated Capacity /Ah |
Rated voltage / V |
Discharging Rate |
WorkingTemperature/°C |
Dimension/mm |
Weight/kg |
| 10 | 22.2 | 50C | -40~60 | 150x148x140 | 3.5 |
| 15 | 22.2 | 50C | -40~60 | 192x172x141 | 5.5 |
| 25 | 22.2 | 50C | -40~60 | 212x172x182 | 8.5 |
Applications: Startup power, emergency power for unmanned aerial vehicles, unmanned helicopters, military aircrafts, etc.
High specific energy Li-ion battery
Features
Light-weight structural components
High specific energy.
Typical parameters
Rated Capacity /Ah |
Rated voltage / V |
Discharging Rate |
WorkingTemperature/°C |
Dimension/mm |
Weight/kg |
| 6 | 22.2 | 3C | -40~60 | 115x68x38 | 0.64 |
| 9 | 22.2 | 3C | -40~60 | 167x68x38 | 0.95 |
Applications: Main power, emergency power for electrical unmanned aerial vehicles, large size unmanned aerial vehicles, etc.
(Batteries can be customized, available special chargers or integrated recharging and discharging equipment)
Low-temperature Li-ion battery
Good capability at low temperature, wide range of working temperature,
Good performance at high rate discharge.
Typical parameters
Rated Capacity /Ah |
Rated voltage / V |
Discharging Rate |
WorkingTemperature/°C |
Dimension/mm |
Weight/kg |
| 9 | 22.2 | 15C | -40~60 | 210x150x145 | 3.5 |
| 13.5 | 22.2 | 15C | -40~60 | 210x225x145 | 5.2 |
Applications: Startup power, emergency power for large-size unmanned aerial vehicles, unmanned helicopters, etc.

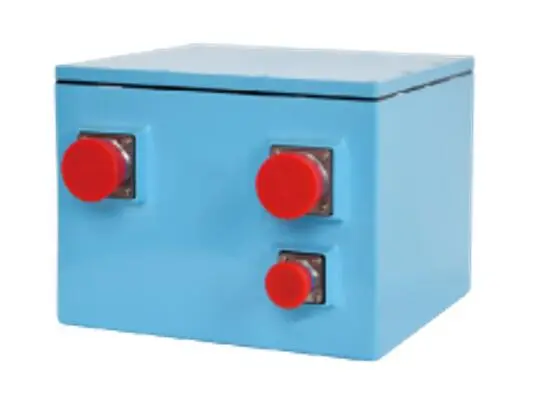

Features
Good performances at anti-dynamic.
Good performance at high rate discharge.
Typical parameters
Rated Capacity /Ah |
Rated voltage / V |
Discharging Rate |
WorkingTemperature/°C |
Dimension/mm |
Weight/kg |
| 9 | 330 | 4C | -40~50 | 302x260x143 | 18.5 |
Applications: Emergency power for large-size unmanned aerial vehicles and military aircrafts, etc.
(Batteries can be customized, available special chargers or integrated recharging and discharging equipment)
