OVERVIEW
A5-TMCS02 Ultra-Short-Range UAV data link can be equipped on small or micro UAV platform to realize real-time transmission of remote control information, telemetry information, and image data between UAV and ground station. The advantages of the data link are high integration, low power consumption and light weight. The distance of transmission is about 30km.
Main Features
- High Integration, Low Power Consumption and Light Weight
- HD/SD Available
- Strong Universality

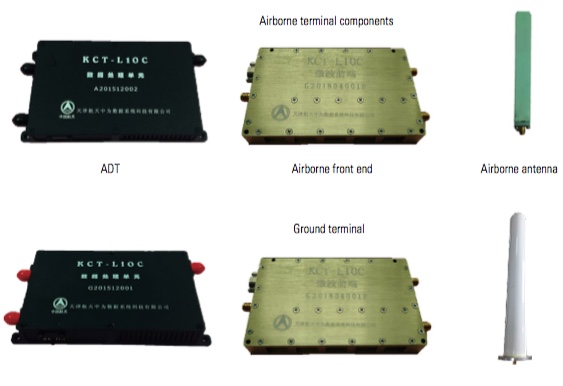

SYSTEM COMPOSITION
The system is composed of airborne terminal and ground terminal.

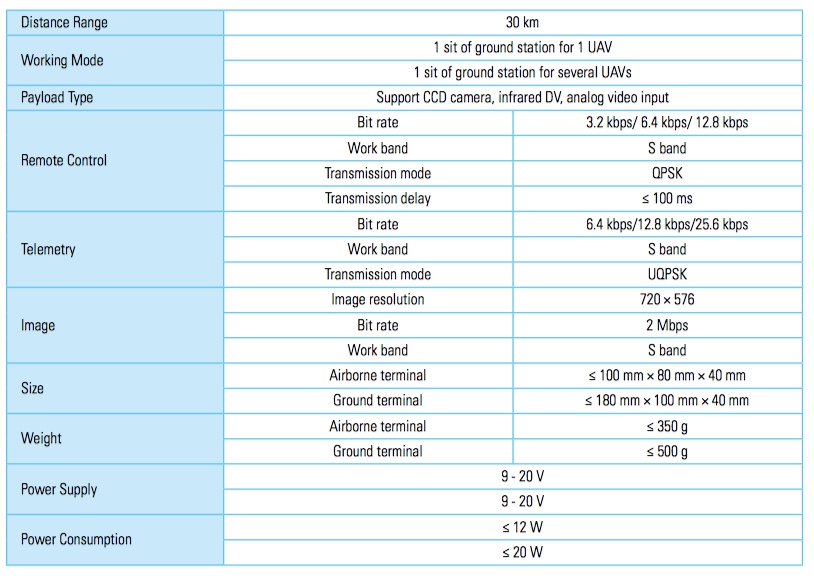

TECHNICAL SPECIFICATIONS
