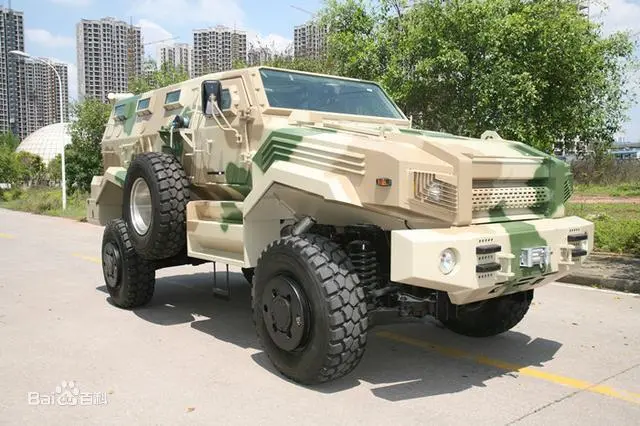

CS/VP14 4×4 high-mobility MRAP is the lastest Mine-Resistant Ambush Protected vehicle developed by China with protection level for grenade and blast mine threats: NATO STANAG 4569-4a. It is capable of resisting anti-tank mine (10kg TNT) explosion pressure activated under any wheel location, and resisting the 7.62×51mm ball ammunition from 30m.
Technical Specification
- Left/Right hand drive (depending user’s requirement)
- Low temperature start-up system
- Mine-resisted seat with four-point type safety belt
- Bullet-proof tyre
- Central inflation system in tyre
- V-mode mine-resisted unit body
- Helical spring individual suspension
- Fast automatic transmission
- Cummins ISDe285 30 engine
- Maximum climbing slope60°
- Maximum speed120km/h
- Length×width×height6600×2600×2650
- Total combat weight9000kg
- Crew2+8 persons
- Wheel base3700mm
- Engine power210KW
- Driving typefull time four-wheel drive
news：
China’s CS/VP14MRAP made another contribution and hit a mine in Nigeria, the wheels were blown up, but the crew was safe and sound.
